ST40

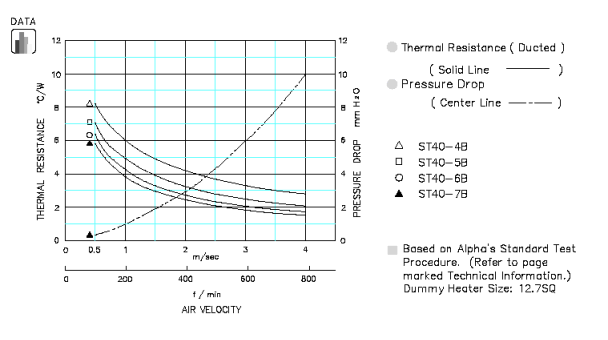

ST40 SPECIFICATION & THERMAL DATA

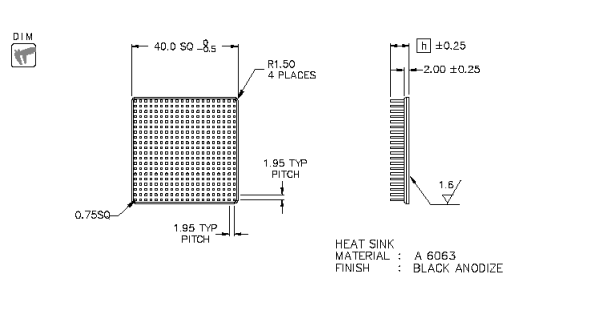

Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
ST40-4B 4 2.0 9.7 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
ST40-5B 5 10.3 STEP IGES
ST40-6B 6 10.9 STEP IGES
ST40-7B 7 11.5 STEP IGES
Specification
