UB100S

UB100S SPECIFICATION & THERMAL DATA

Model name :
UB100S-
B
-
line
Heat Sink
 CodeHeight
1515 mm
2020 mm
2525 mm
3030 mm
Shoulder Screws & Spring
Shoulder Screws Spring
  Code Code No Name Code Code No
None -- -- None --
-- -------- -------- -- --------
Thermal Interface
 CodeCode NoName
None -- --
-- --

Note

The thermal interface materials listed here are phase change materials (PCMs). These PCMs are naturally tacky and will be pre-applied to the heat sink. However, PCMs may peel-off from the heat sink base when removing the release liner prior to heat sink installation. Since PCMs rely on their natural tackiness instead of an adhesive, this can happen. In light of this, we recommend that our customers apply additional pressure to the PCMs prior to removing the protective liner to allow the PCMs to wet out on the heat sink surface (refer to instruction item #4 below). Storage and Handling Instruction

  • For ordering of individual components, such as shoulder screws or springs, please visit each link/page.

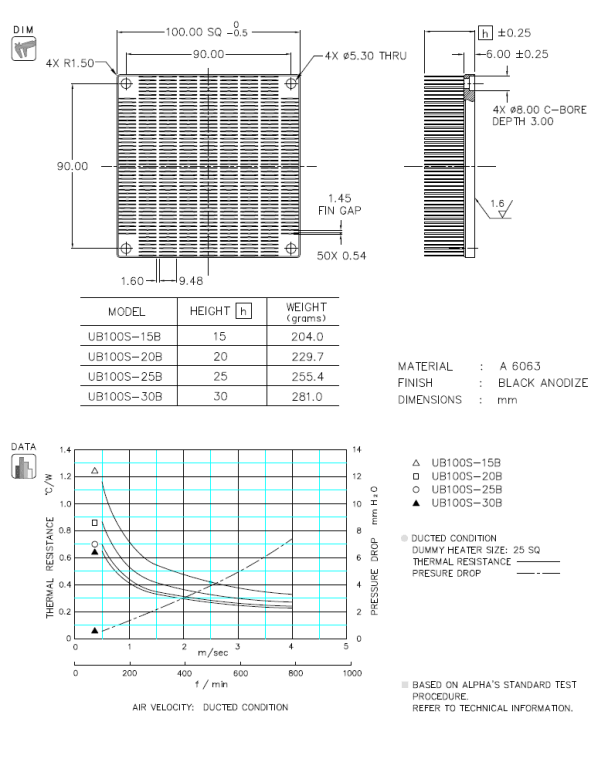

Dimension and thermal data Board keep out pattern

Click to enlarge
