UB12060

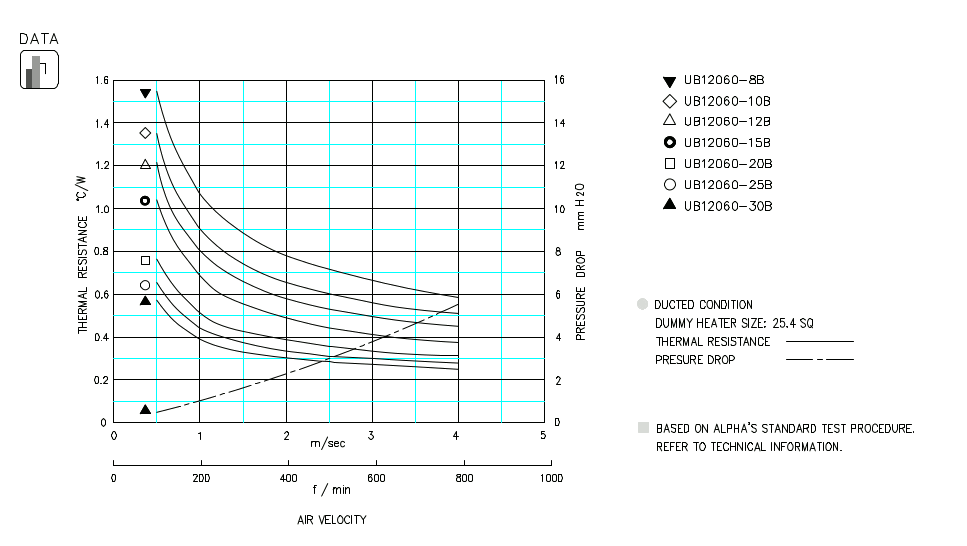

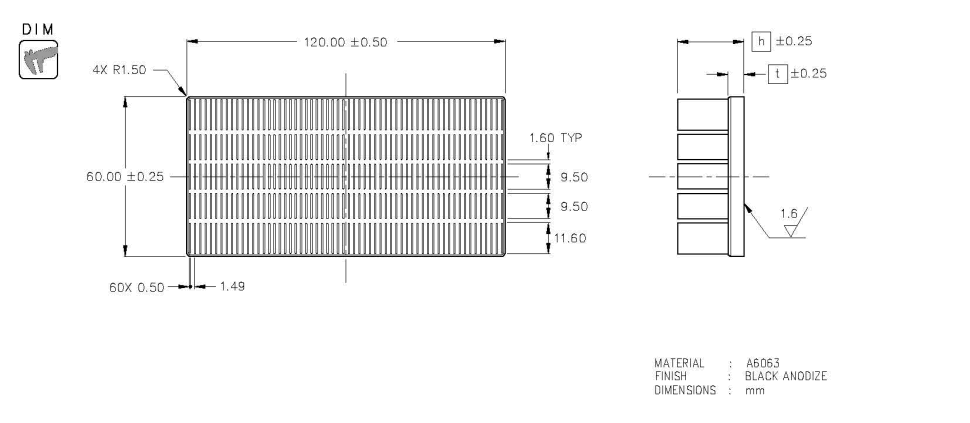

UB12060 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
UB12060-15B 15 6 153.1 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
UB12060-20B 20 173.8 STEP IGES
UB12060-25B 25 194.4 STEP IGES
UB12060-30B 30 215.1 STEP IGES
Specification
