| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| UB17-6B | 6 | 2.0 | 2.1 |
  RoHS  REACH  DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
| UB17-7B | 7 | 2.3 | STEP | IGES | ||||||
| UB17-10B | 10 | 2.7 | STEP | IGES | ||||||
| UB17-12B | 12 | 3.0 | STEP | IGES | ||||||
| UB17-15B | 15 | 3.4 | STEP | IGES | ||||||
| UB17-20B | 20 | 4.2 | STEP | IGES | ||||||
Select Height |
--- | --- |
||||||||

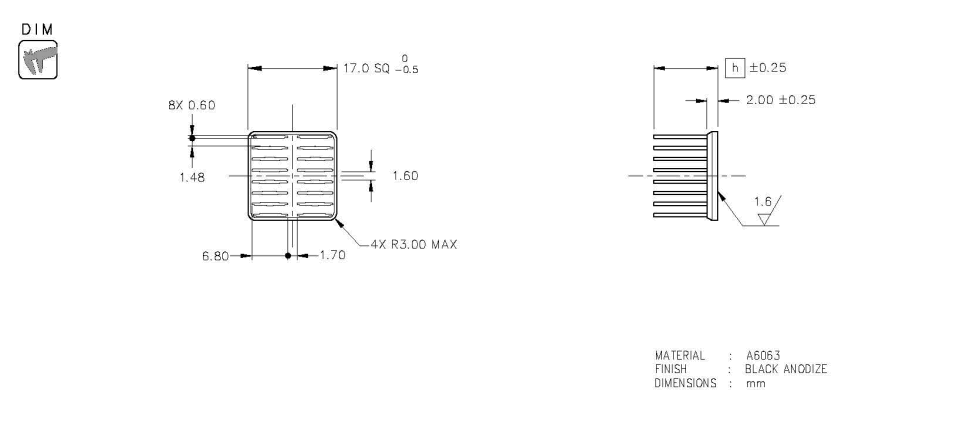

Dimension :mm
