UB19

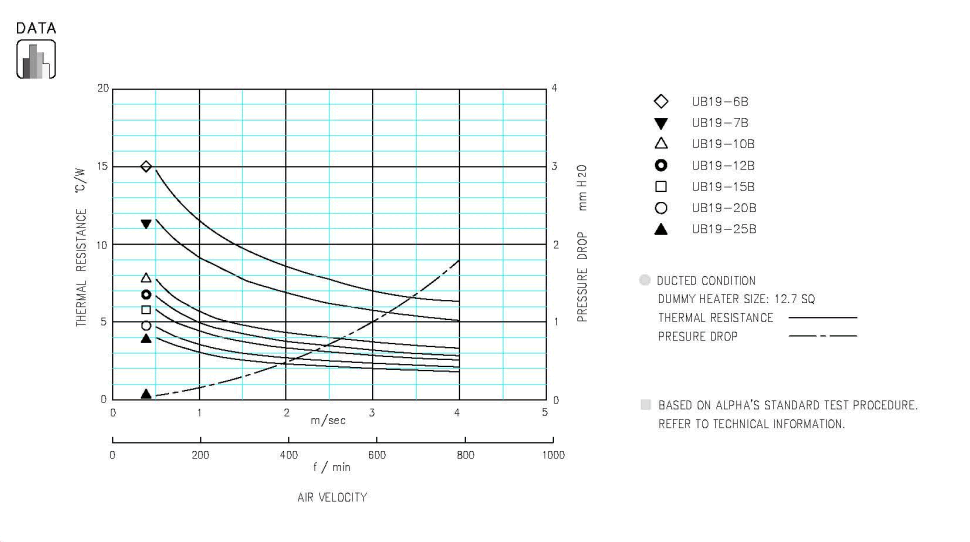

UB19 SPECIFICATION & THERMAL DATA

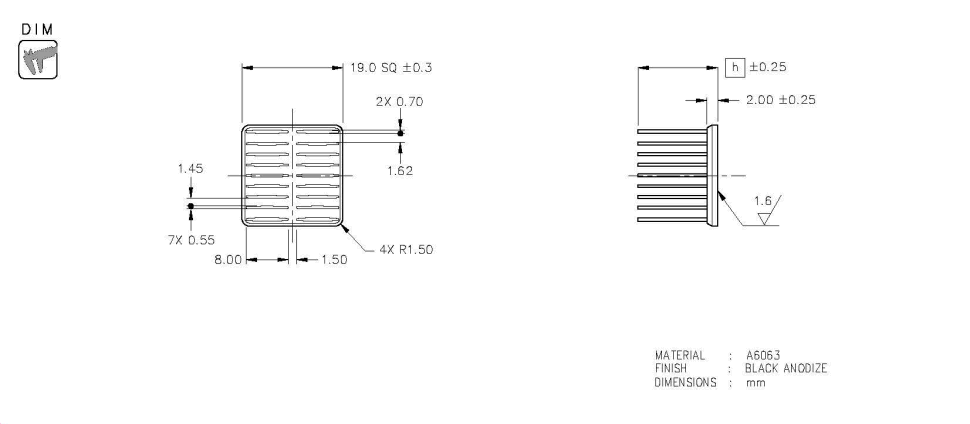

Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
UB19-6B 6 2.0 2.6 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
UB19-7B 7 2.8 STEP IGES
UB19-10B 10 3.3 STEP IGES
UB19-12B 12 3.7 STEP IGES
UB19-15B 15 4.2 STEP IGES
UB19-20B 20 5.1 STEP IGES
UB19-25B 25 6.0 STEP IGES
Select Height
---
---

Specification
