UB25

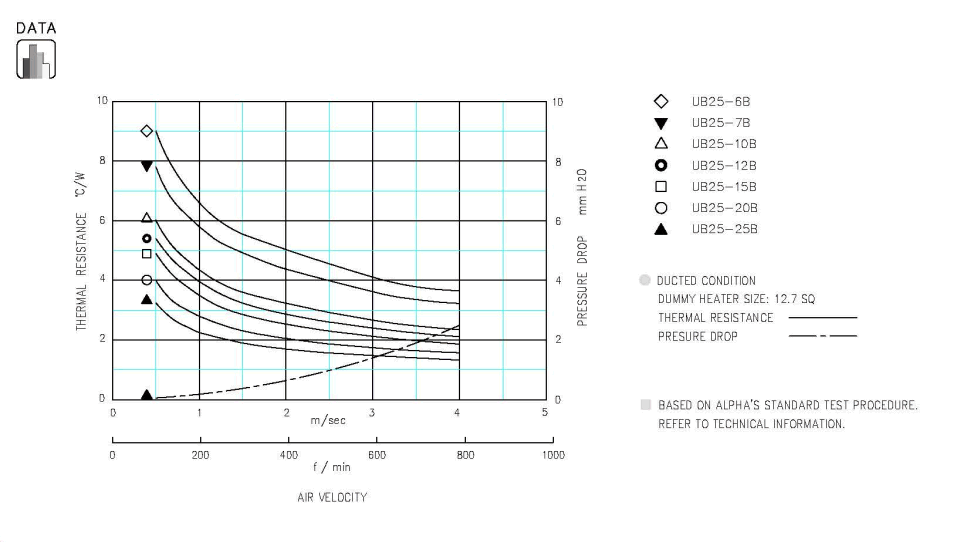

UB25 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
UB25-6B 6 2.0 4.8 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
UB25-7B 7 5.2 STEP IGES
UB25-10B 10 6.4 STEP IGES
UB25-12B 12 7.1 STEP IGES
UB25-15B 15 8.1 STEP IGES
UB25-20B 20 9.6 STEP IGES
UB25-25B 25 11.2 STEP IGES
Select Height
---
---

Specification
