UB28

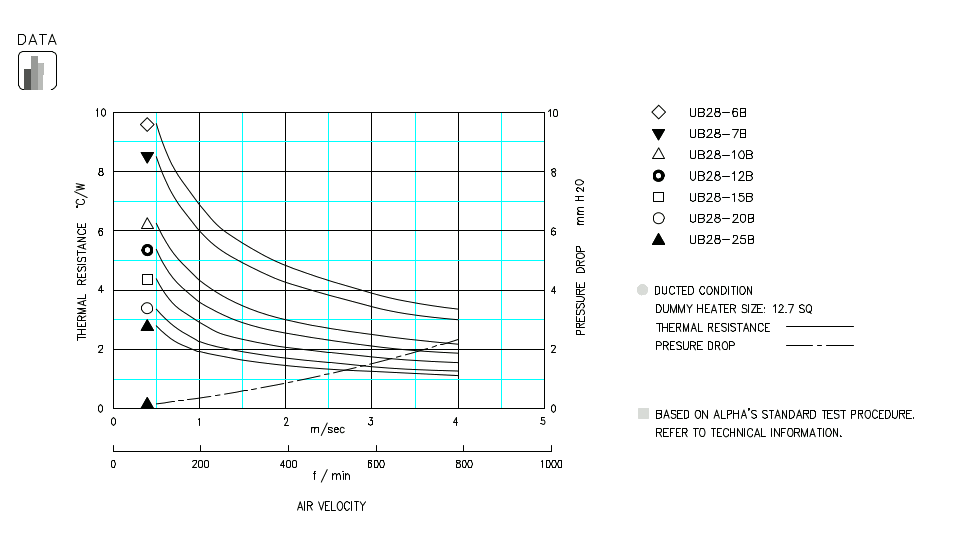

UB28 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
BASE
(t)
WEIGHT
(grams)
Download Price / Online Shopping Option
UB28-6B 6 2.0 5.5 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
UB28-7B75.9STEPIGES
UB28-10B107.1STEPIGES
UB28-12B127.9STEPIGES
UB28-15B159.1STEPIGES
UB28-20B2011.1STEPIGES
UB28-25B2513.1STEPIGES
Select Height
---
---

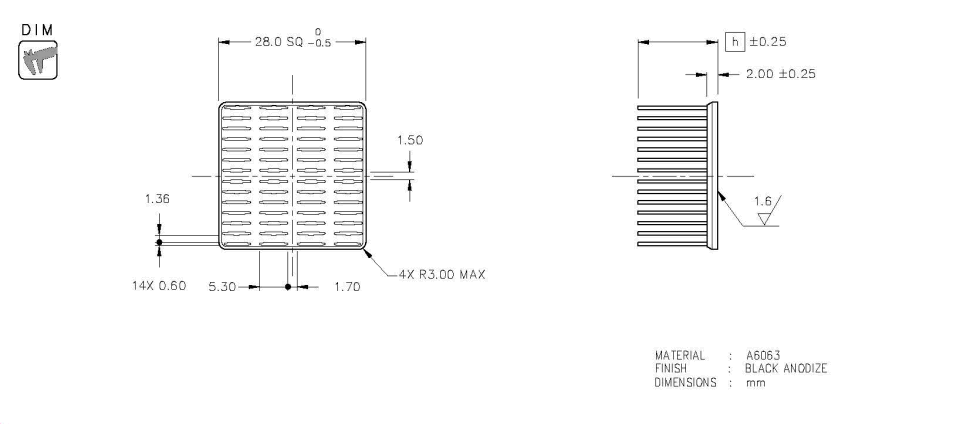

Dimension :mm

Specification
