UB35

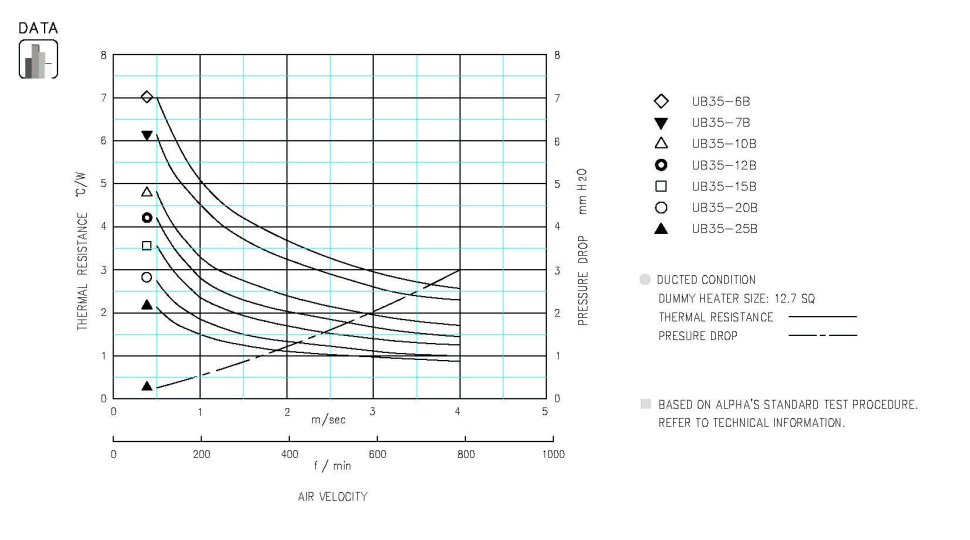

UB35 SPECIFICATION & THERMAL DATA

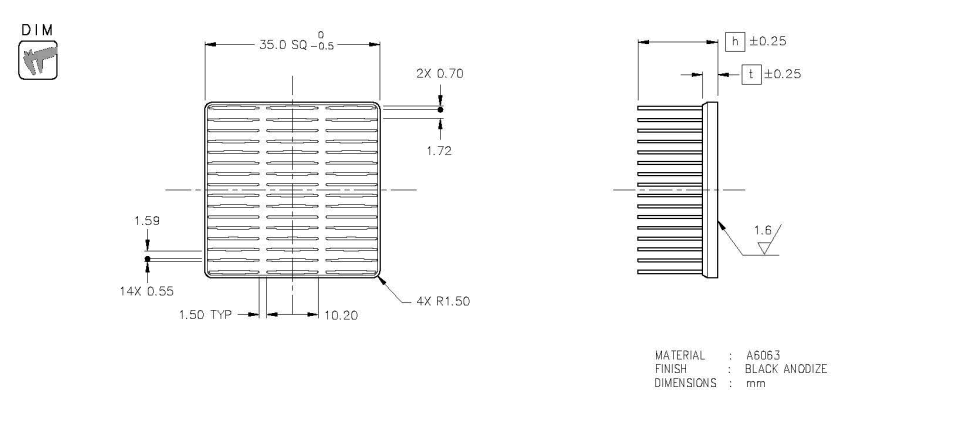

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
UB35-6B 6 2.0 9.2 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
UB35-7B 7 9.9 STEP IGES
UB35-10B 10 3.0 13.5 STEP IGES
UB35-12B 12 14.9 STEP IGES
UB35-15B 15 17.0 STEP IGES
UB35-20B 20 20.5 STEP IGES
UB35-25B 25 24.0 STEP IGES
Select Height
---
---

Specification
