UB38

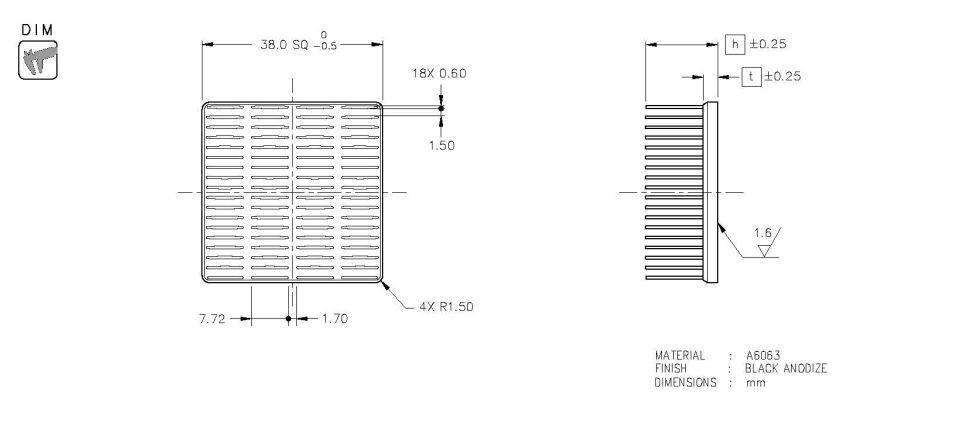

UB38 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
UB38-6B 6 2.0 10.8 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
UB38-7B 7 11.6 STEP IGES
UB38-10B 10 3.0 17.0 STEP IGES
UB38-12B 12 18.6 STEP IGES
UB38-15B 15 20.9 STEP IGES
UB38-20B 20 24.8 STEP IGES
UB38-25B 25 28.7 STEP IGES
Select Height
---
---

Specification
