UB4020

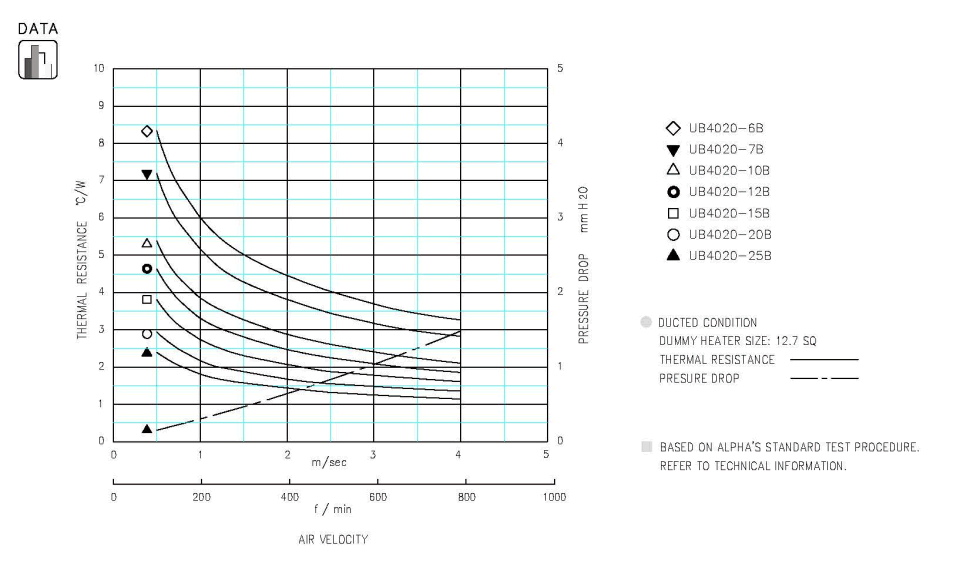

UB4020 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
WEIGHT
(grams)
Download Price / Online Shopping Option
UB4020-6B 6 5.9 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
UB4020-7B 7 6.3 STEP IGES
UB4020-10B 10 7.5 STEP IGES
UB4020-12B 12 8.3 STEP IGES
UB4020-15B 15 9.6 STEP IGES
UB4020-20B 20 11.6 STEP IGES
UB4020-25B 25 13.7 STEP IGES
Select Height

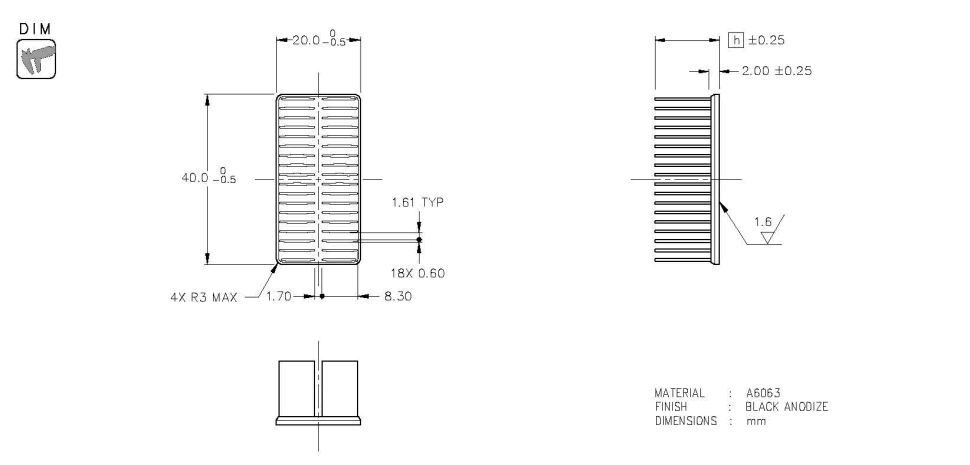

Dimension :mm

Specification
