UB4030

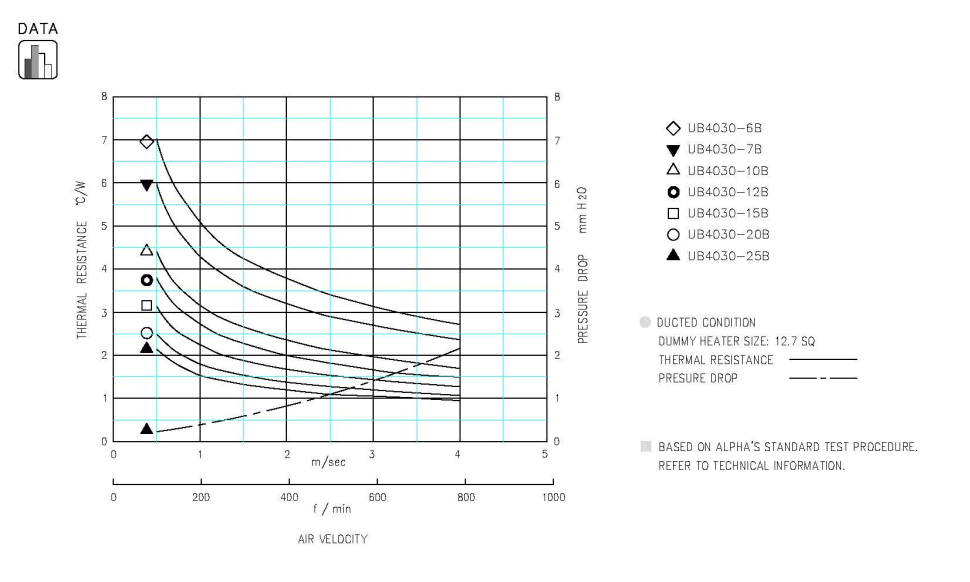

UB4030 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
BASE
(t)
WEIGHT
(grams)
Download Price / Online Shopping Option
UB4030-6B 6 2.0 12.0 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
UB4030-7B712.9STEPIGES
UB4030-10B102.517.8STEPIGES
UB4030-12B1219.7STEPIGES
UB4030-15B1522.5STEPIGES
UB4030-20B2027.3STEPIGES
UB4030-25B2532.0STEPIGES
Select Height
---
---

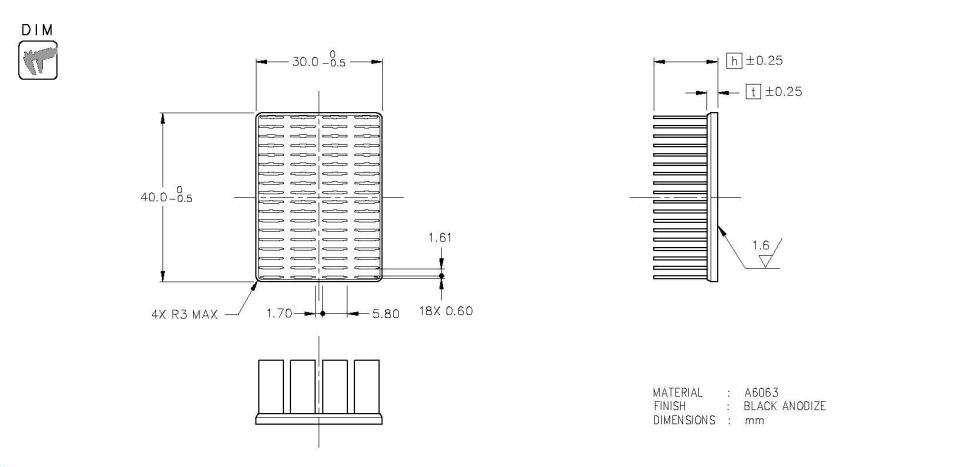

Dimension :mm

Specification
