UB42

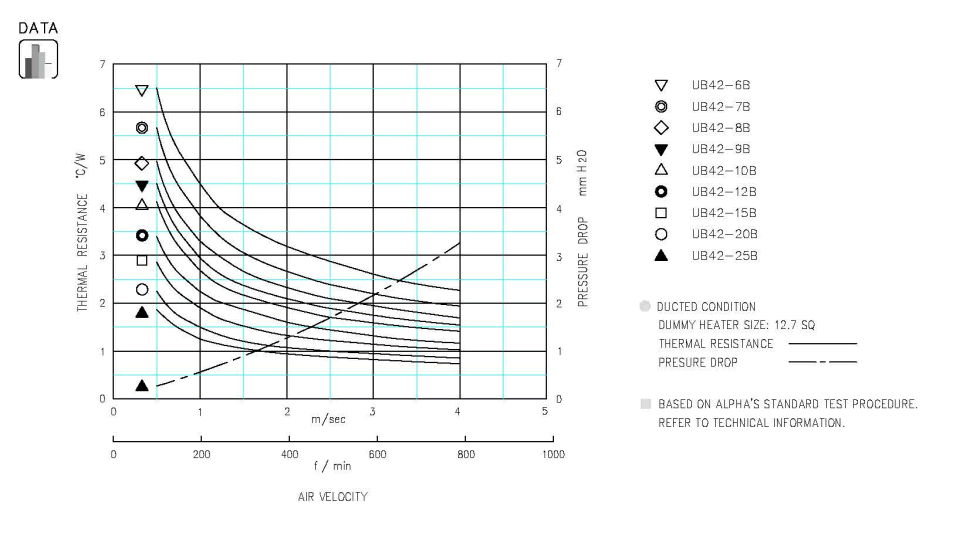

UB42 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
BASE
(t)
WEIGHT
(grams)
Download Price / Online Shopping Option
UB42-6B 6 2.5 15.0 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
>Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
UB42-7B715.9STEPIGES
UB42-8B816.9STEPIGES
UB42-9B917.9STEPIGES
UB42-10B103.020.6STEPIGES
UB42-12B1222.6STEPIGES
UB42-15B1525.5STEPIGES
UB42-20B2030.3STEPIGES
UB42-25B2535.2STEPIGES
Select Height
---
---


Dimension :mm
