UB45

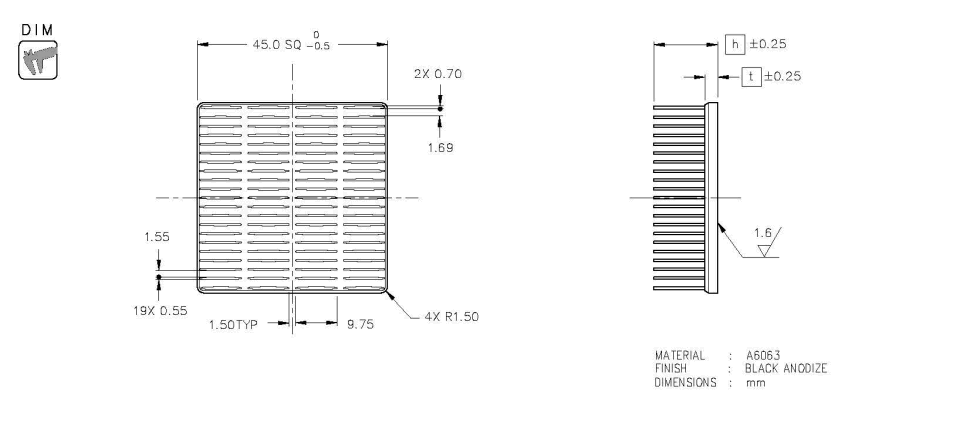

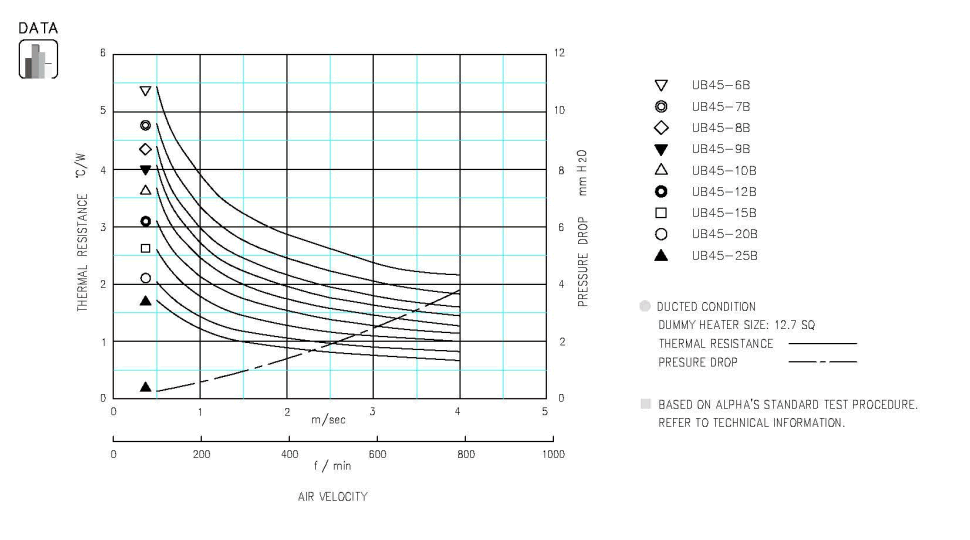

UB45 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
UB45-6B 6 2.5 16.8 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
UB45-7B 7 18.0 STEP IGES
UB45-8B 8 19.2 STEP IGES
UB45-9B 9 20.4 STEP IGES
UB45-10B 10 3.0 21.8 STEP IGES
UB45-12B 12 24.3 STEP IGES
UB45-15B 15 28.0 STEP IGES
UB45-20B 20 34.3 STEP IGES
UB45-25B 25 40.5 STEP IGES
Select Height
---
---

Specification
