UB48

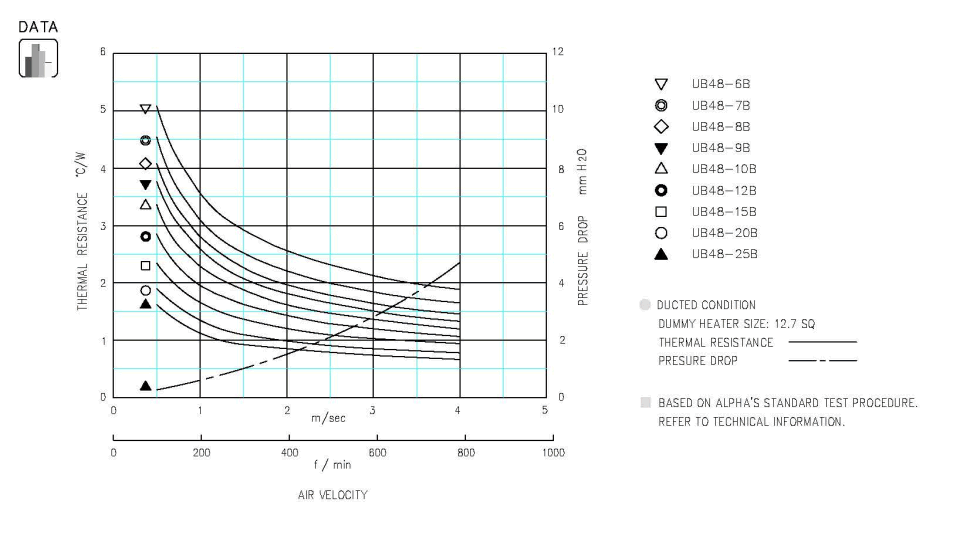

UB48 SPECIFICATION & THERMAL DATA

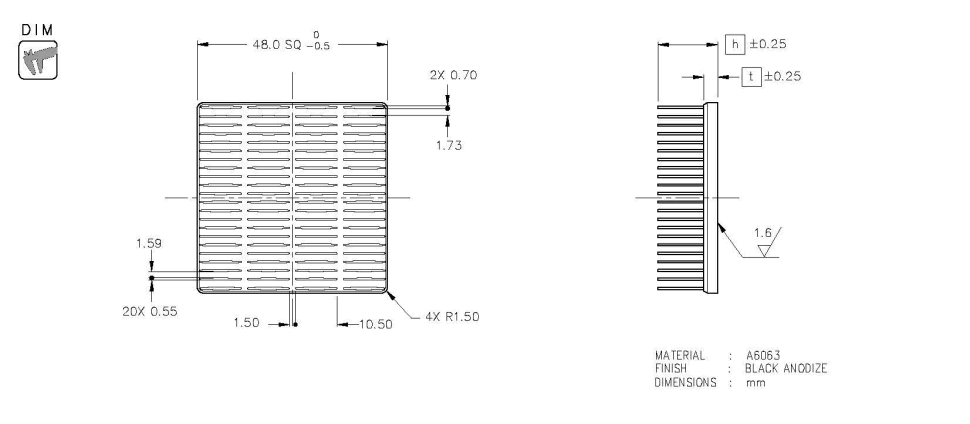

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
UB48-6B 6 2.5 19.4 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
UB48-7B 7 20.5 STEP IGES
UB48-8B 8 21.7 STEP IGES
UB48-9B 9 22.8 STEP IGES
UB48-10B 10 3.5 28.5 STEP IGES
UB48-12B 12 31.1 STEP IGES
UB48-15B 15 35.0 STEP IGES
UB48-20B 20 41.5 STEP IGES
UB48-25B 25 48.0 STEP IGES
Select Height
---
---

Specification
