UB5070

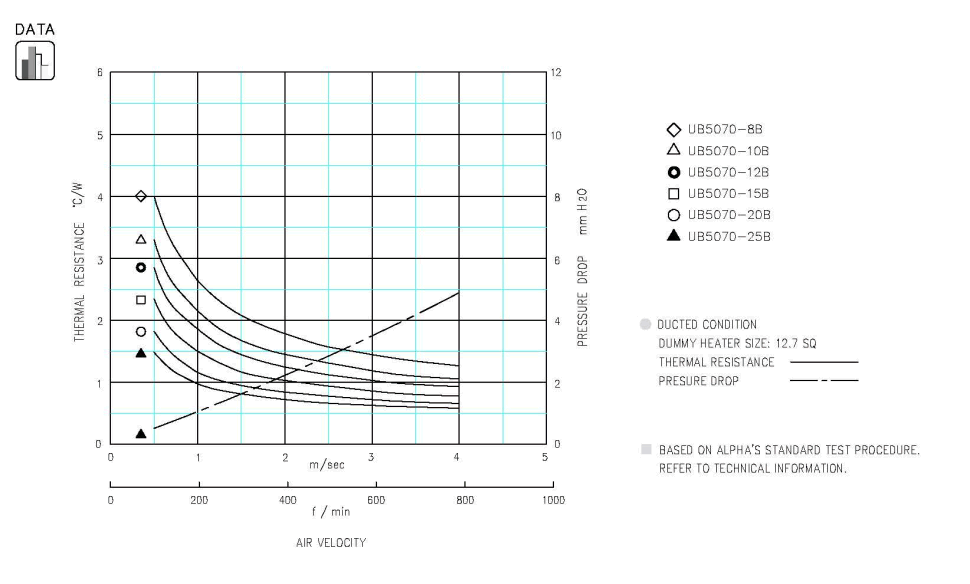

UB5070 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
WEIGHT
(grams)
Download Price / Online Shopping Option
UB5070-8B 8 38.0 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
UB5070-10B 10 41.9 STEP IGES
UB5070-12B 1245.9STEP IGES
UB5070-15B 15 51.9 STEP IGES
UB5070-20B 20 61.8 STEP IGES
UB5070-25B 25 71.7 STEP IGES
Select Height

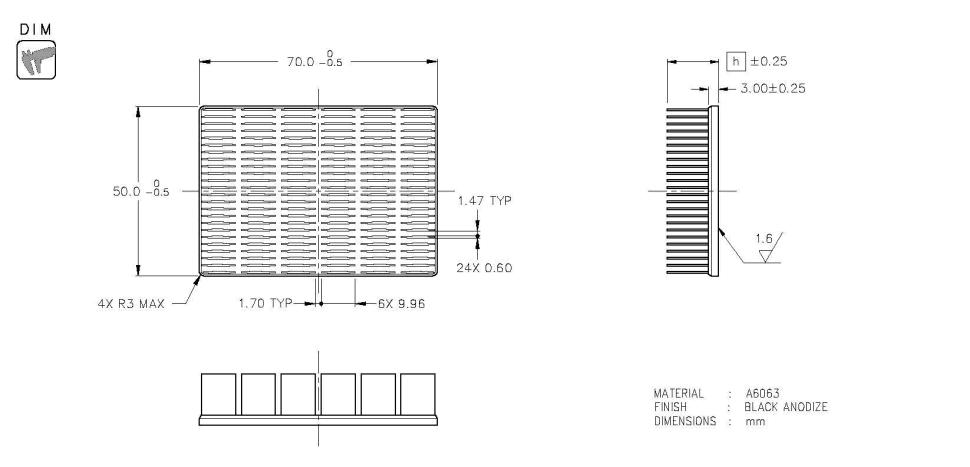

Dimension :mm

Specification
