UB52

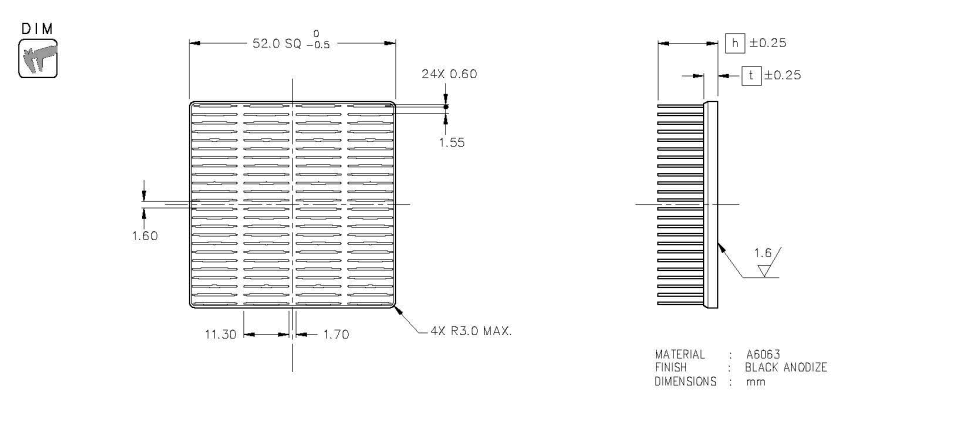

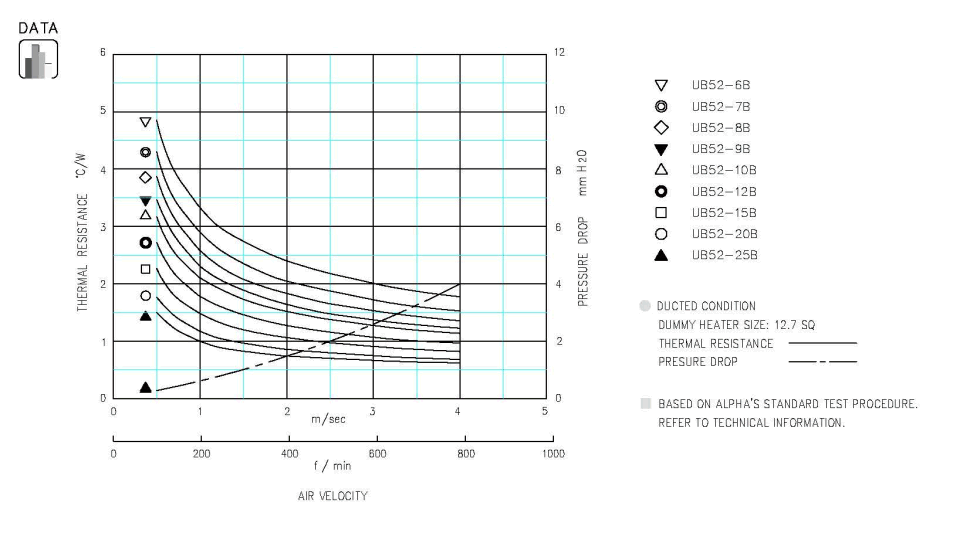

UB52 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
BASE
(t)
WEIGHT
(grams)
Download Price / Online Shopping Option
UB52-6B 6 2.5 23.0 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
UB52-7B724.5STEPIGES
UB52-8B826.0STEPIGES
UB52-9B927.5STEPIGES
UB52-10B103.534.7STEPIGES
UB52-12B1237.7STEPIGES
UB52-15B1542.2STEPIGES
UB52-20B2049.7STEPIGES
UB52-25B2557.2STEPIGES
Select Height
---
---


Dimension :mm

Specification
