UB6040

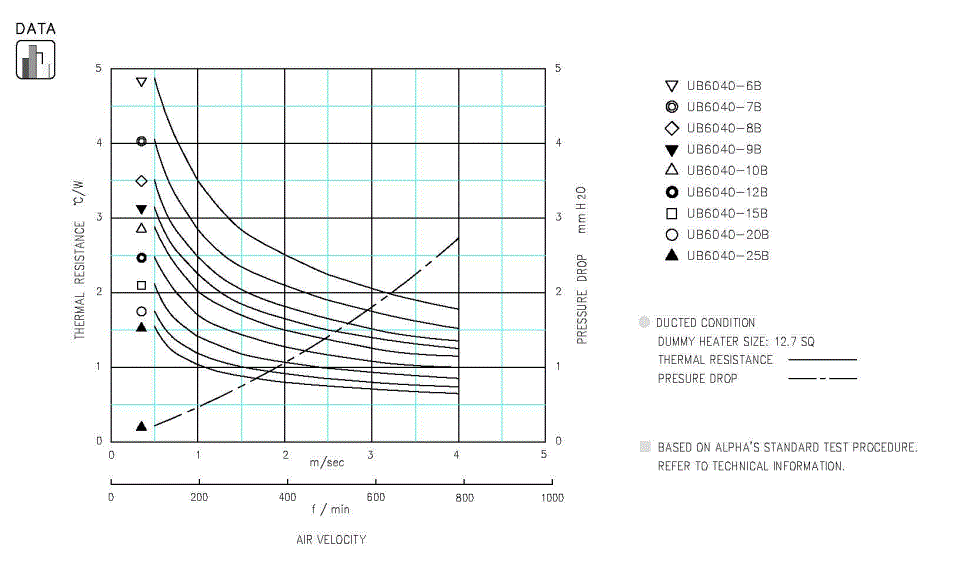

UB6040 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
WEIGHT
(grams)
Download Price / Online Shopping Option
UB6040-6B 6 22.9 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
UB6040-7B 7 24.1 STEP IGES
UB6040-8B 8 25.4 STEP IGES
UB6040-9B 9 26.6 STEP IGES
UB6040-10B 10 27.8 STEP IGES
UB6040-12B 12 30.3 STEP IGES
UB6040-15B 15 34.0 STEP IGES
UB6040-20B 20 40.2 STEP IGES
UB6040-25B 25 46.4 STEP IGES
Select Height

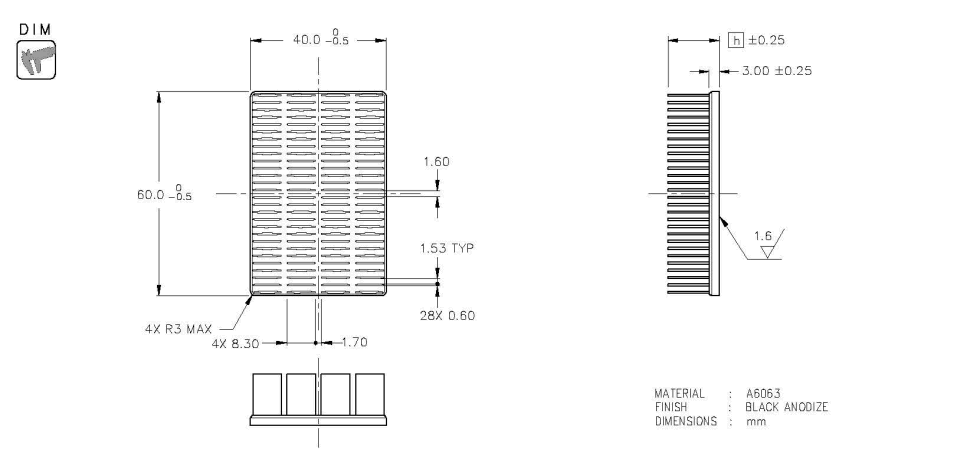

Dimension :mm

Specification
