UB6080

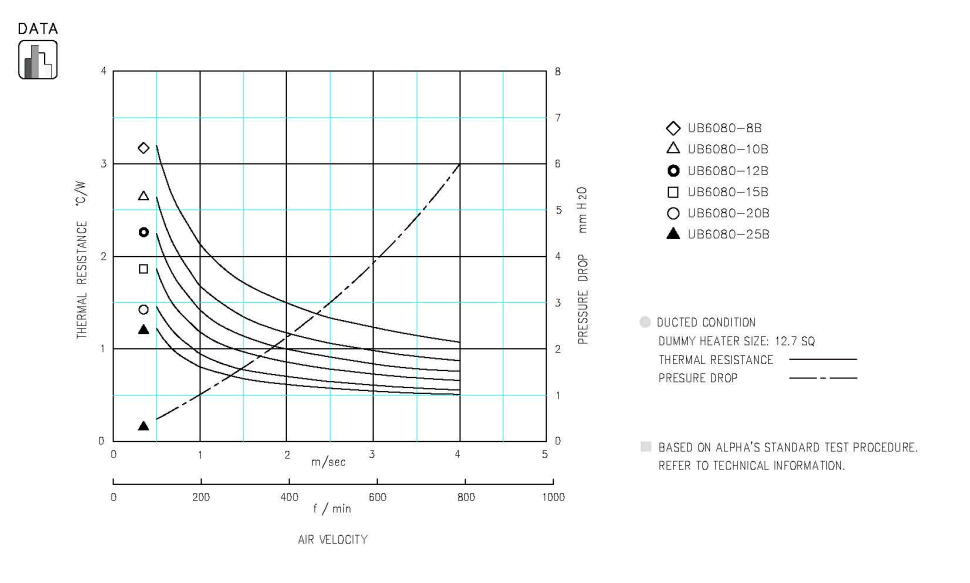

UB6080 Specification & Thermal Data
Specification
  MODEL HEIGHT
(h)
WEIGHT
(grams)
Download Price / Online Shopping Option
UB6080-8B 8 61.6 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
UB6080-10B 10 66.7 STEP IGES
UB6080-12B 12 71.9STEP IGES
UB6080-15B 15 79.5 STEP IGES
UB6080-20B 20 92.3 STEP IGES
UB6080-25B 25 105.1 STEP IGES
Select Height

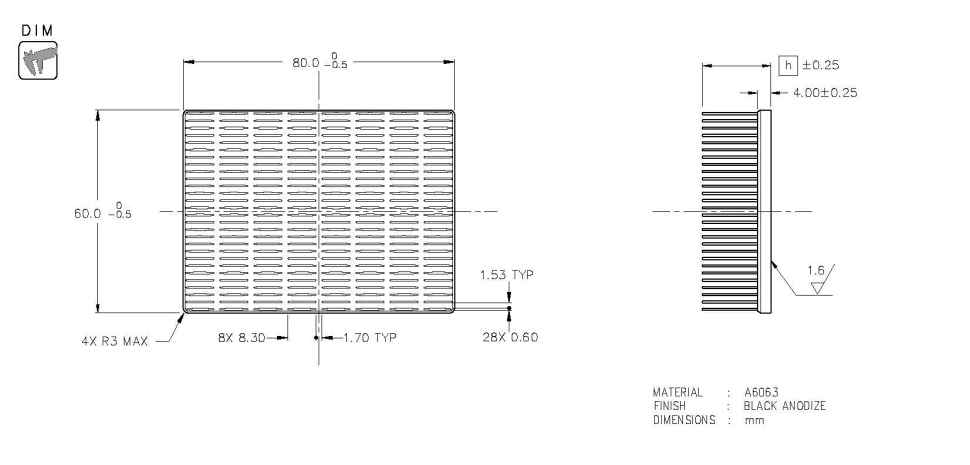

Dimension :mm

Specification
