MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
---|---|---|---|---|---|---|---|---|---|---|
UB90-15B | 15 | 6 | 169 |
![]() ![]() RoHS ![]() REACH ![]() DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink.
|
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
UB90-20B | 20 | 191 | STEP | IGES | ||||||
UB90-25B | 25 | 213 | STEP | IGES | ||||||
UB90-30B | 30 | 235 | STEP | IGES |

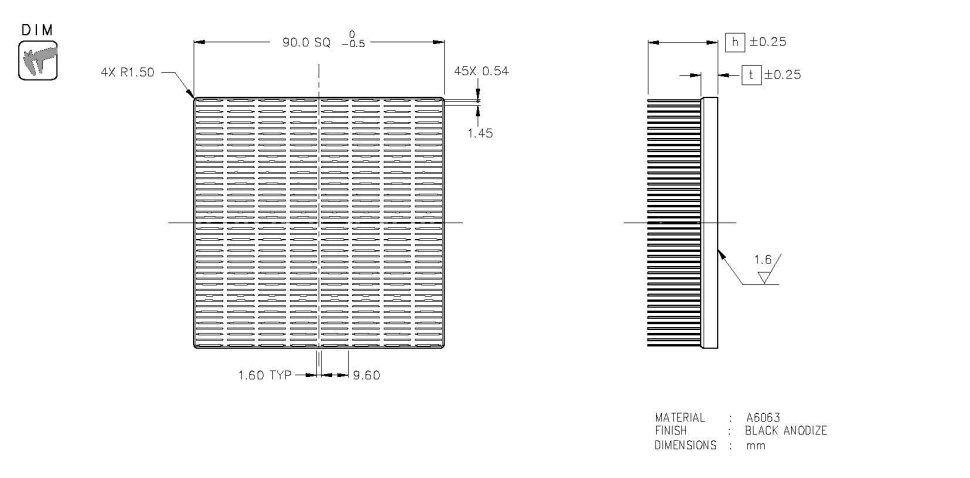

Dimension :mm
