UBH70S

UBH70S SPECIFICATION & THERMAL DATA

Model name :
UBH70S-
B
-
Heat Sink Height (h)
15 mm
20 mm
25 mm
  • For ordering of individual components, such as springs, please visit each link/page.
  Shoulder Screws Spring
-- -------- -------- -- --------
No shoulder screws and spring required
 Thermal Interface
-- --
No thermal interface required

Note

The thermal interface materials listed here are phase change materials (PCMs). These PCMs are naturally tacky and will be pre-applied to the heat sink. However, PCMs may peel-off from the heat sink base when removing the release liner prior to heat sink installation. Since PCMs rely on their natural tackiness instead of an adhesive, this can happen. In light of this, we recommend that our customers apply additional pressure to the PCMs prior to removing the protective liner to allow the PCMs to wet out on the heat sink surface (refer to instruction item #4 below). Storage and Handling Instruction

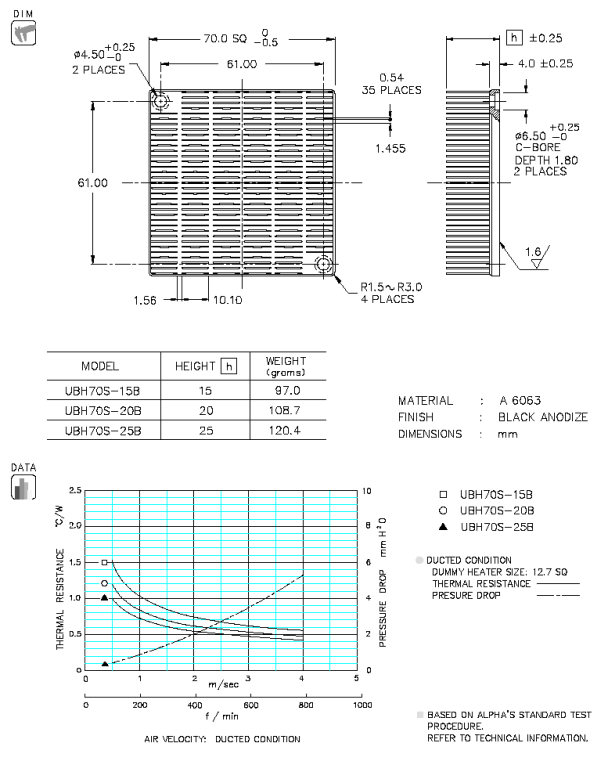

Dimension and thermal data Board keep out pattern

USE HEX NUTS M3x0.5

Click to enlarge

Click to enlarge

USE CUSTOM BACKING-PLATE

Click to enlarge

SHOULDER-SCREW/RETAINING RING E-2.5
