Online Catalog

UBZ40

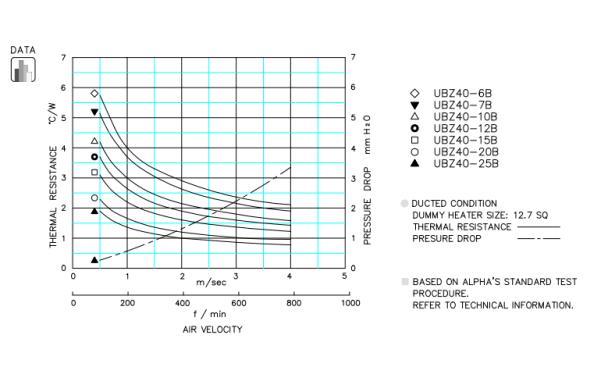

UBZ40 SPECIFICATION & THERMAL

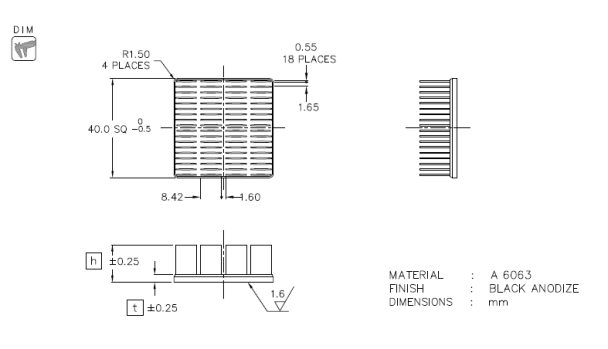

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
UBZ40-6B 6 2.0 11.5 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
UBZ40-7B 7 12.3 STEP IGES
UBZ40-10B 10 3.0 18.1 STEP IGES
UBZ40-12B 12 19.7 STEP IGES
UBZ40-15B 15 22.0 STEP IGES
UBZ40-20B 20 25.8 STEP IGES
UBZ40-25B 25 29.7 STEP IGES
Select Height
---
---

Specification
