UBZ45

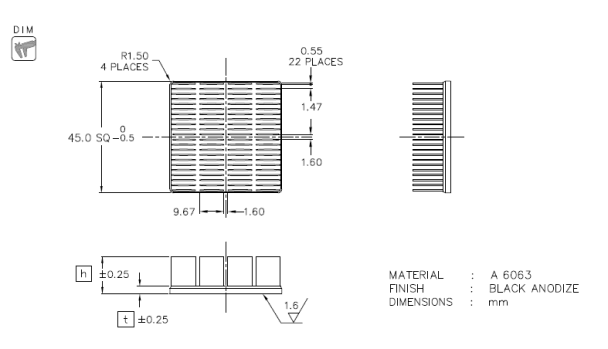

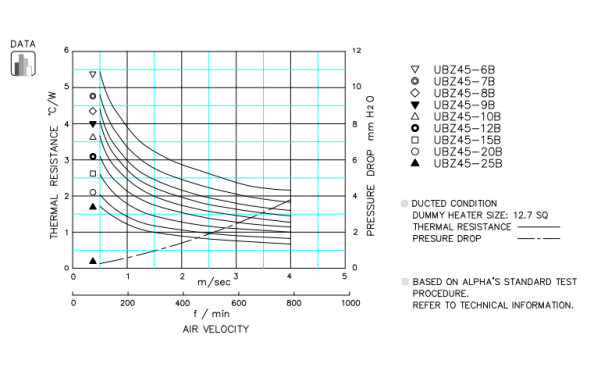

UBZ45 SPECIFICATION & THERMAL
Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
UBZ45-6B 6 2.5 17.2 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
UBZ45-7B 7 18.3 STEP IGES
UBZ45-8B 8 19.4 STEP IGES
UBZ45-9B 9 20.5 STEP IGES
UBZ45-10B 10 3.0 23.7 STEP IGES
UBZ45-12B 12 25.9 STEP IGES
UBZ45-15B 15 29.2 STEP IGES
UBZ45-20B 20 34.7 STEP IGES
UBZ45-25B 25 40.2 STEP IGES
Select Height
---
---

Specification
