Online Catalog

UBZ54

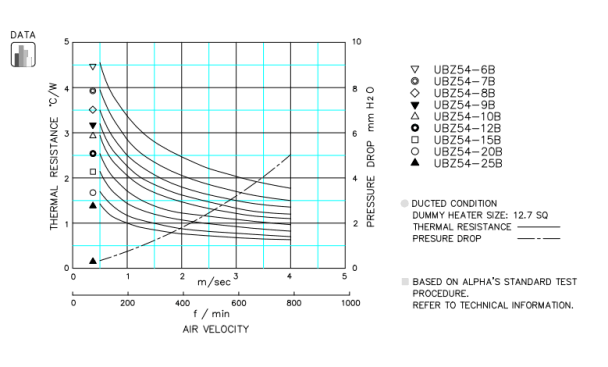

UBZ54 SPECIFICATION & THERMAL

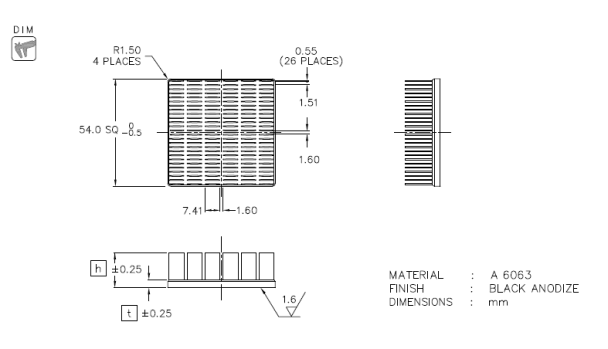

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
UBZ54-6B 6 3.0 27.6 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
UBZ54-7B 7 29.1 STEP IGES
UBZ54-8B 8 30.6 STEP IGES
UBZ54-9B 9 32.1 STEP IGES
UBZ54-10B 10 4.0 39.9 STEP IGES
UBZ54-12B 12 42.9 STEP IGES
UBZ54-15B 15 47.3 STEP IGES
UBZ54-20B 20 54.7 STEP IGES
UBZ54-25B 25 62.1 STEP IGES
Select Height
---
---

Specification
