UBZ60

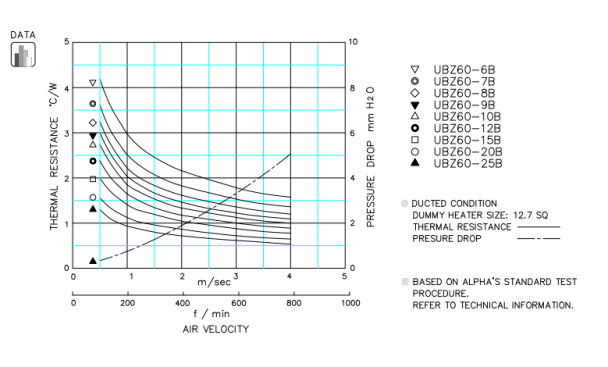

UBZ60 SPECIFICATION & THERMAL

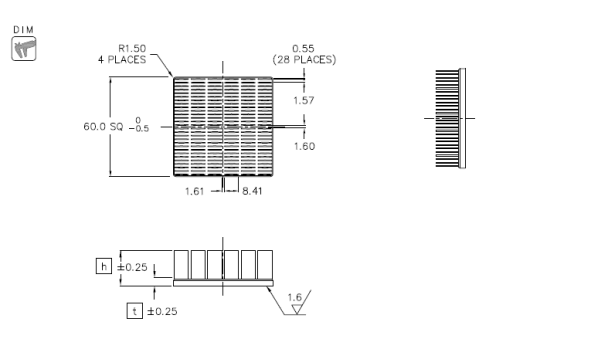

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
UBZ60-6B 6 3.0 34.1 catalog

DXF

RoHS

REACH
IGES STEP
Quantity
+
UBZ60-7B 7 35.9 STEP IGES
UBZ60-8B 8 37.8 STEP IGES
UBZ60-9B 9 39.6 STEP IGES
UBZ60-10B 10 4.0 49.2 STEP IGES
UBZ60-12B 12 52.8 STEP IGES
UBZ60-15B 15 58.3 STEP IGES
UBZ60-20B 20 67.4 STEP IGES
UBZ60-25B 25 76.5 STEP IGES
Select Height
---
---

Specification
