W100

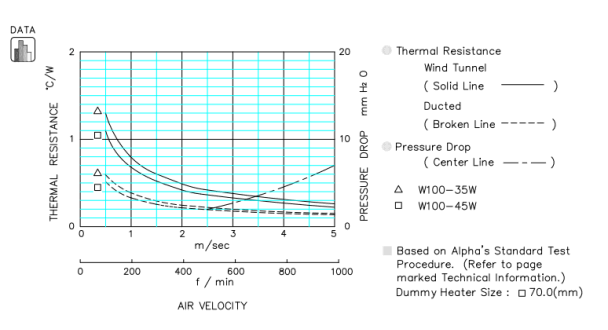

W100 SPECIFICATION & THERMAL DATA

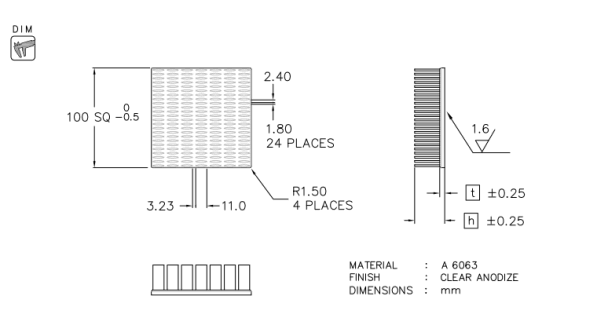

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
W100-20W 20 6 276 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
W100-25W 25 297 STEP IGES
W100-30W 30 318 STEP IGES
W100-35W 35 7 403 STEP IGES
W100-40W 40 424 STEP IGES
W100-45W 45 445 STEP IGES
Specification
