W15

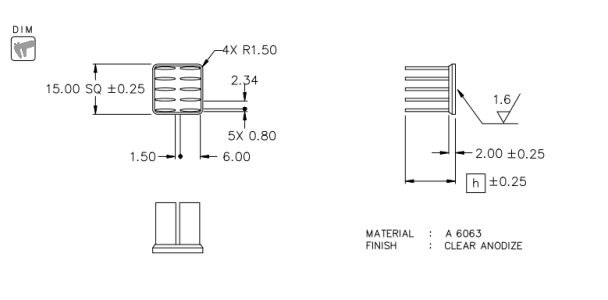

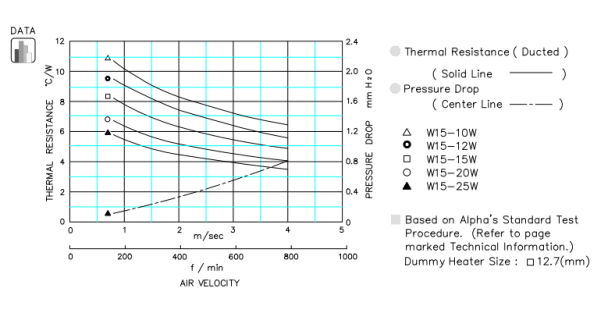

W15 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
W15-10W 10 2.0 1.9 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
W15-12W 12 2.1 STEP IGES
W15-15W 15 2.4 STEP IGES
W15-20W 20 2.9 STEP IGES
W15-25W 25 3.4 STEP IGES
Select Height
---
---

Specification
