W30

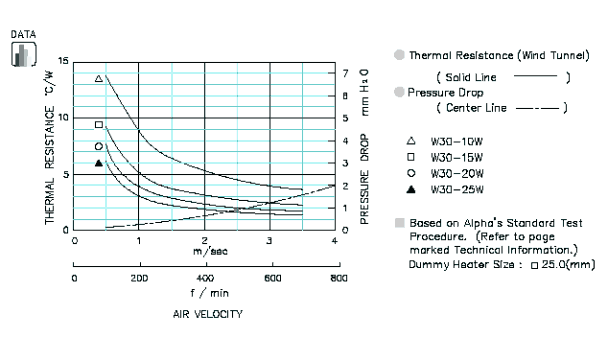

W30 SPECIFICATION & THERMAL DATA

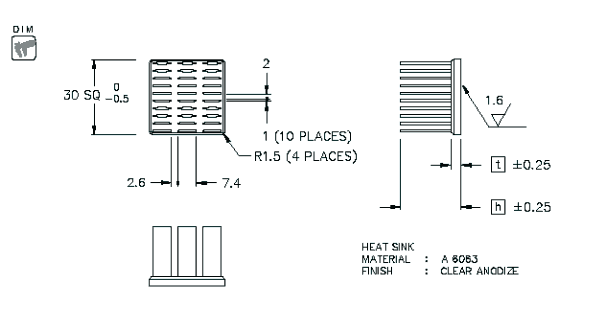

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
W30-10W 10 2.0 8.5 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
W30-12W 12 9.5 STEP IGES
W30-15W 15 11.0 STEP IGES
W30-20W 20 2.5 14.0 STEP IGES
W30-25W 25 16.5 STEP IGES
Select Height
---
---

Specification
