W35

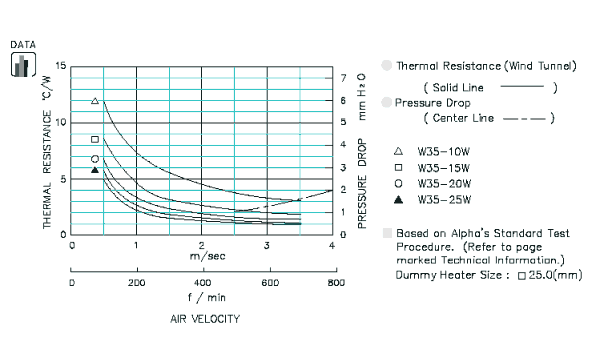

W35 SPECIFICATION & THERMAL DATA

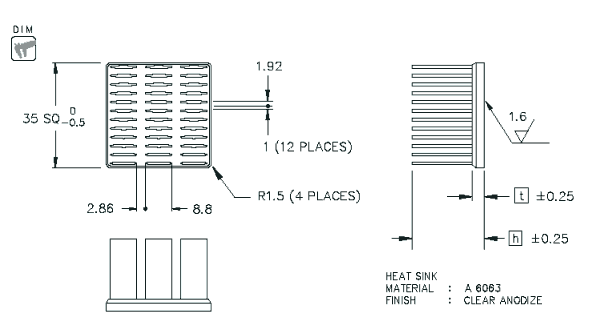

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
W35-10W 10 2.0 12.0 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
W35-12W 12 13.2 STEP IGES
W35-15W 15 15.0 STEP IGES
W35-20W 20 2.5 19.5 STEP IGES
W35-25W 25 23.0 STEP IGES
Select Height
---
---

Specification
