W40

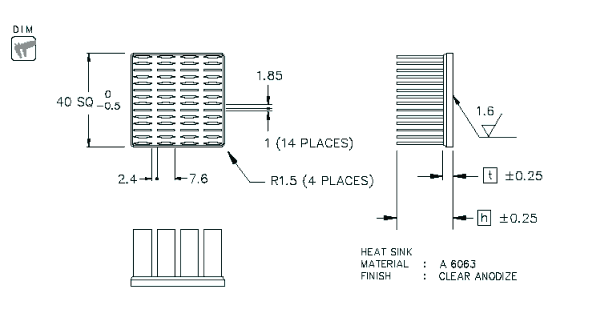

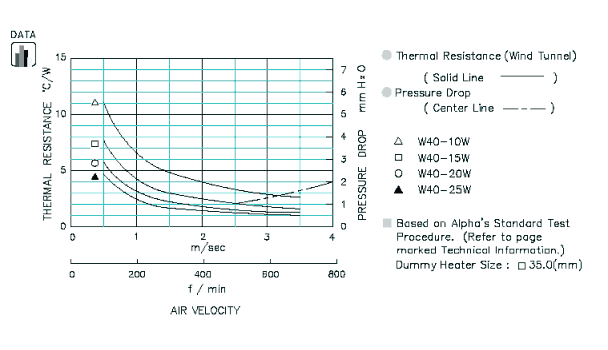

W40 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
W40-10W 10 2.0 15.5 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
W40-12W 12 17.3 STEP IGES
W40-15W 15 20.0 STEP IGES
W40-20W 20 2.5 26.0 STEP IGES
W40-25W 25 30.5 STEP IGES
Select Height
---
---

Specification
