W60

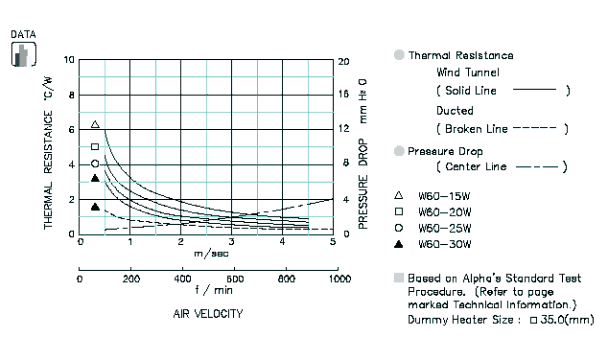

W60 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
W60-15W 15 3.0 54.0 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
W60-20W 20 64.0 STEP IGES
W60-25W 25 3.5 78.0 STEP IGES
W60-30W 30 4.0 92.0 STEP IGES
Select Height
---
---

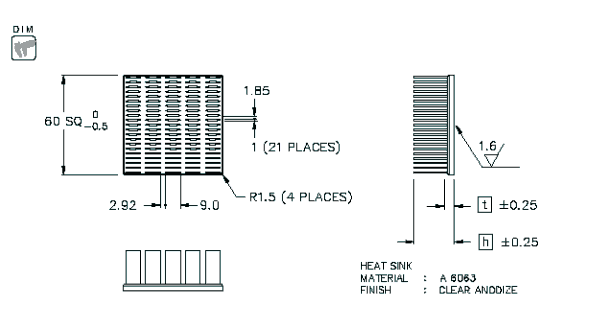

Dimension :mm

Specification
