Z25

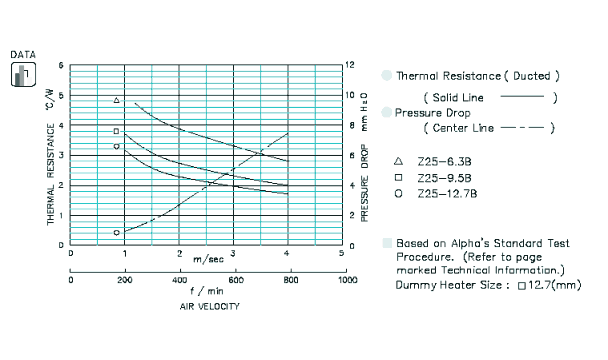

Z25 SPECIFICATION & THERMAL DATA

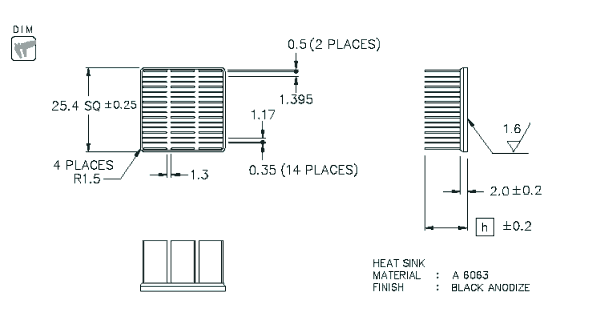

Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
Z25-6.3B 6.3 2.0 5.0 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
Z25-9.5B 9.5 6.0 STEP IGES
Z25-12.7B 12.7 7.0 STEP IGES
Select Height
---
---

Specification
