Z30

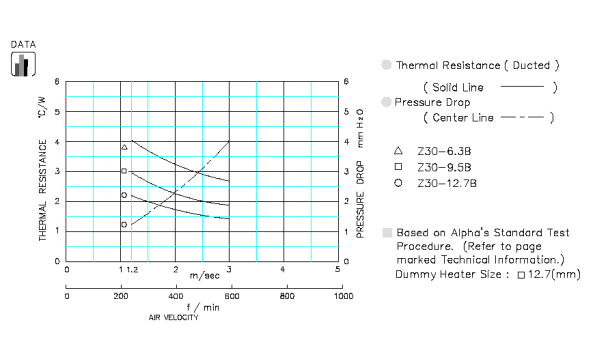

Z30 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
Z30-6.3B 6.3 2.0 7.0 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
Z30-9.5B 9.5 8.5 STEP IGES
Z30-12.7B 12.7 10.0 STEP IGES
Select Height
---
---

Specification
