Z40

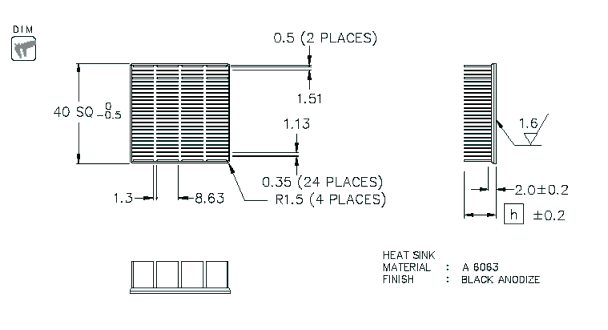

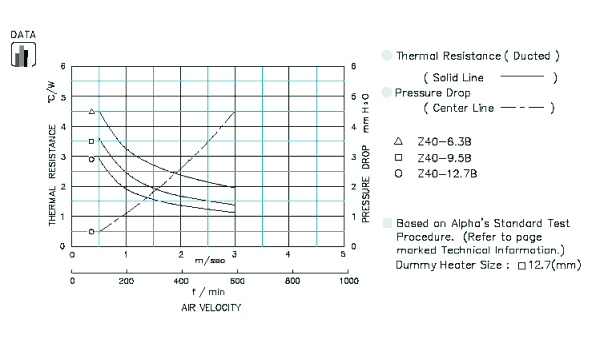

Z40 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
Z40-6.3B 6.3 2.0 12.5 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
Z40-9.5B 9.5 15.5 STEP IGES
Z40-12.7B 12.7 18.5 STEP IGES
Select Height
---
---

Specification
