Z48

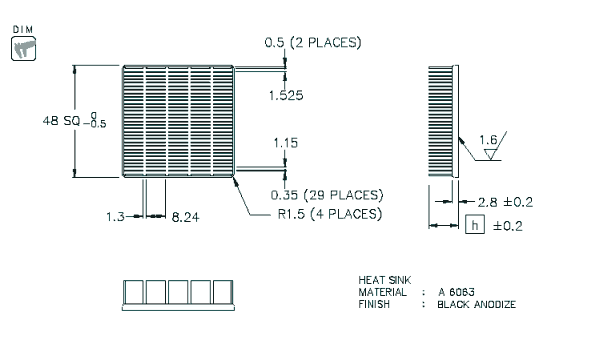

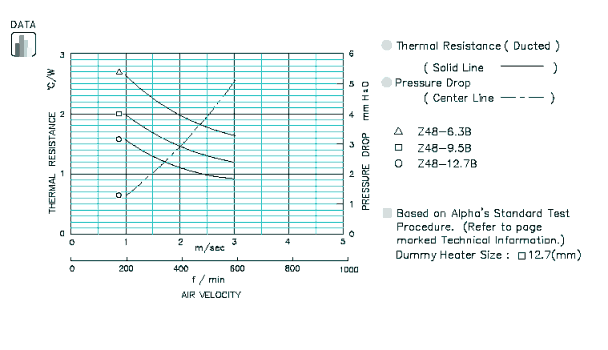

Z48 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
Z48-6.3B 6.3 2.8 21.5 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
Z48-9.5B 9.5 25.5 STEP IGES
Z48-12.7B 12.7 29.5 STEP IGES
Select Height
---
---

Specification
