ZZ40

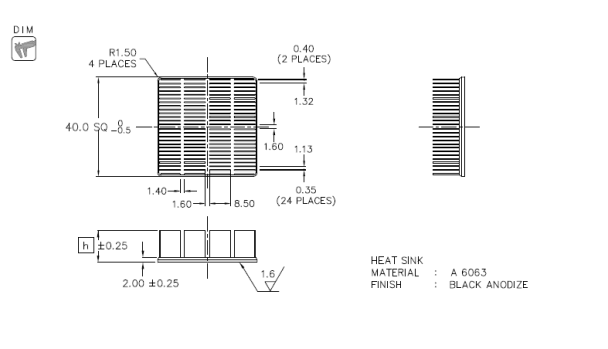

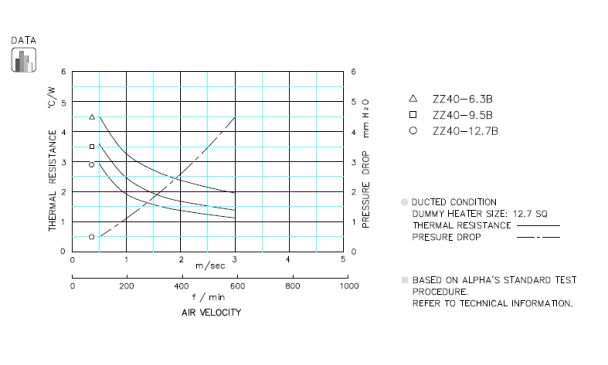

ZZ40 SPECIFICATION & THERMAL
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
ZZ40-6.3B 6.3 2.0 12.0 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
ZZ40-9.5B 9.5 14.6 STEP IGES
ZZ40-12.7B 12.7 17.3 STEP IGES
Select Height
---
---

Specification
