ZZ45

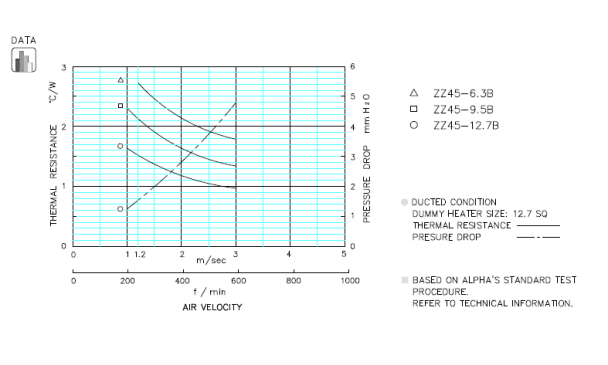

ZZ45 SPECIFICATION & THERMAL

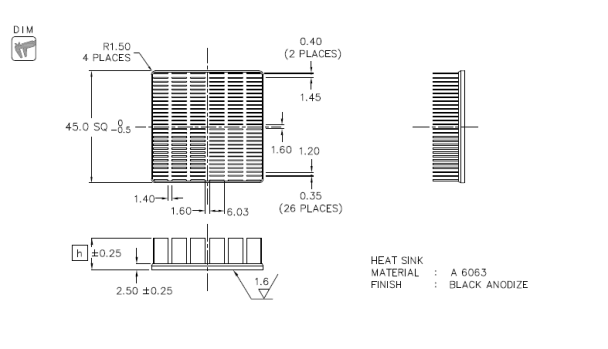

Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
ZZ45-6.3B 6.3 2.5 17.0 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
ZZ45-9.5B 9.5 20.0 STEP IGES
ZZ45-12.7B 12.7 23.1 STEP IGES
Select Height
---
---

Specification
