ZZ50

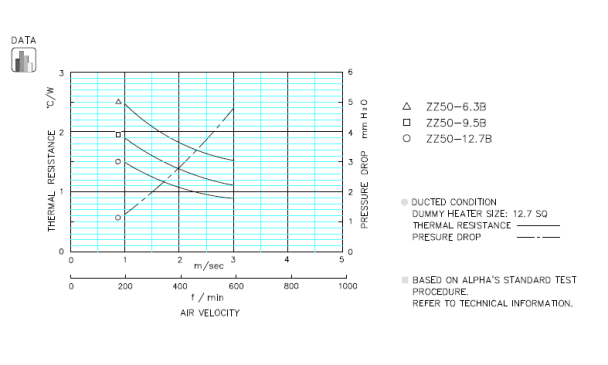

ZZ50 SPECIFICATION & THERMAL DATA

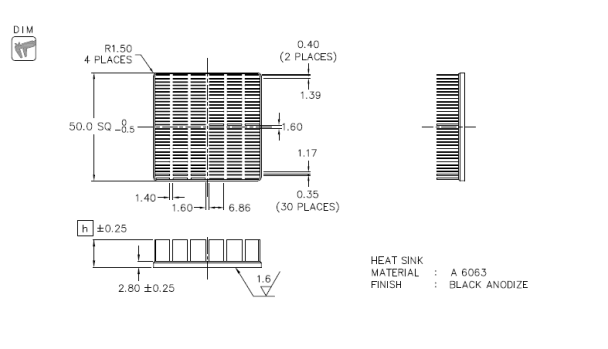

Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
ZZ50-6.3B 6.3 2.8 22.8 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
ZZ50-9.5B 9.5 26.8 STEP IGES
ZZ50-12.7B 12.7 30.8 STEP IGES
Select Height
---
---

Specification
