ZZ54

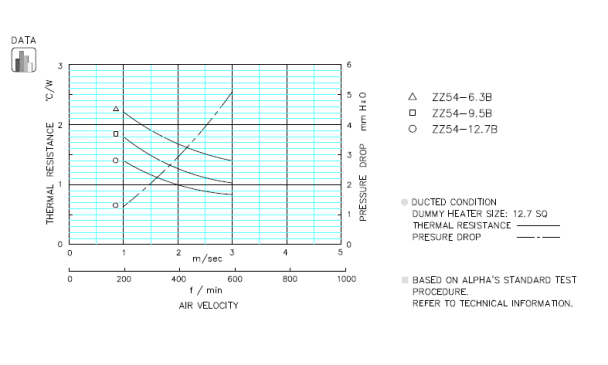

ZZ54 SPECIFICATION & THERMAL

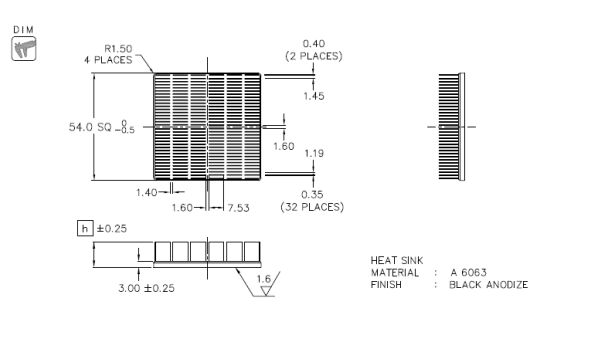

Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
ZZ54-6.3B 6.3 3.0 28.0 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
ZZ54-9.5B 9.5 32.6 STEP IGES
ZZ54-12.7B 12.7 37.2 STEP IGES
Select Height
---
---

Specification
