DCC Series

DCC Series
  • DC-DC Converter Heatsinks - Elliptical fins with 0.57-0.86mm fin thickness.
  • Low pressure drop heat sink for highly populated system.
  • High performance heat sink for challenging thermal performance.
catalog RoHS REACH 3D CAD

For Eighth Bricks
Model Base Size (mm) Height (mm) Hole Pitch (mm) Drawing

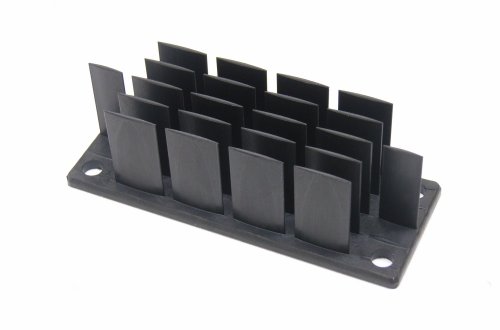

DCC2359L series Heat Sink DCC2359L 23.0 x 58.5 6, 11, 18, 23 15.24 x 50.80 DXF

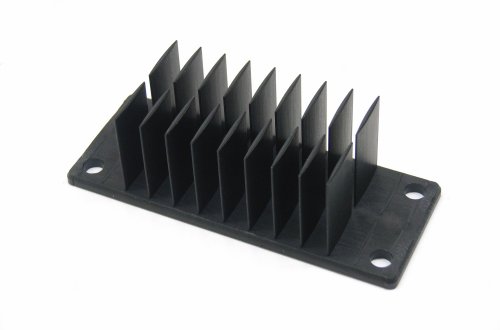

DCC5923L series Heat Sink DCC5923L 58.5 x 23.0 50.80 x 15.24 DXF

For Quarter Bricks
Model Base Size (mm) Height (mm) Hole Pitch (mm) Drawing

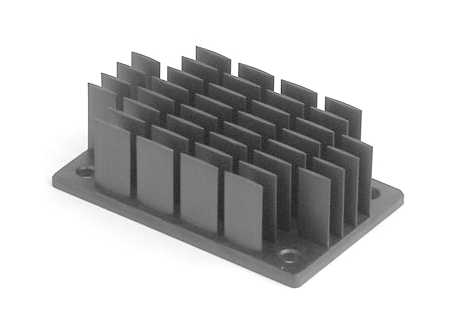

DCC3758L series Heat Sink DCC3758L 36.8 x 57.9 11, 18, 23 26.16 x 47.24 DXF

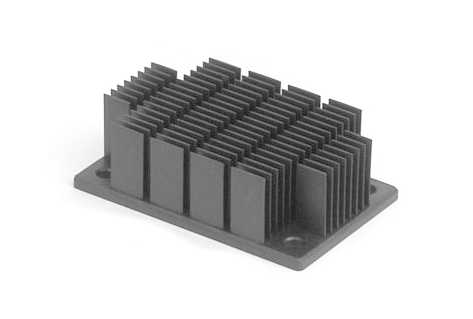

DCC3758U series Heat Sink DCC3758U DXF

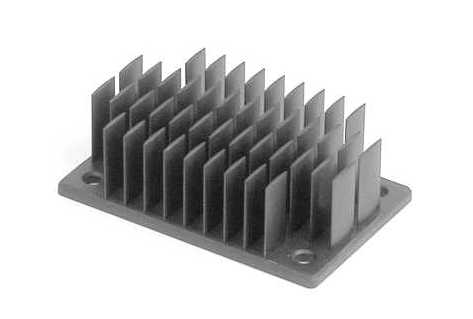

DCC5837L series Heat Sink DCC5837L 57.9 x 36.8 47.24 x 26.16 DXF

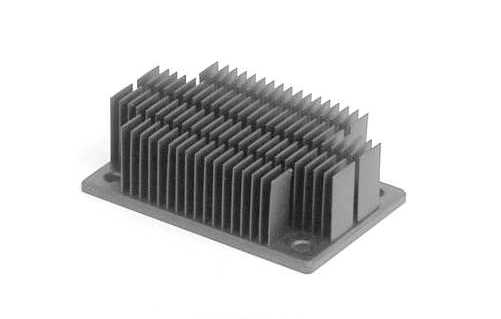

DCC5837U series Heat Sink DCC5837U DXF

For Half Bricks
Model Base Size (mm) Height (mm) Hole Pitch (mm) Drawing

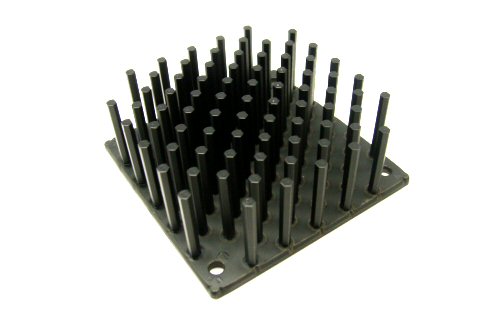

DCC60N series Heat Sink DCC60N 60.0 x 60.0 11, 18, 23 50.80 x 48.26 DXF

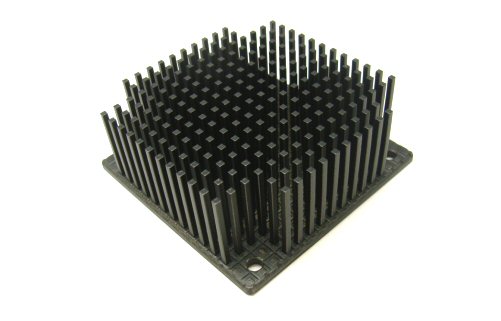

DCC60S series Heat Sink DCC60S DXF

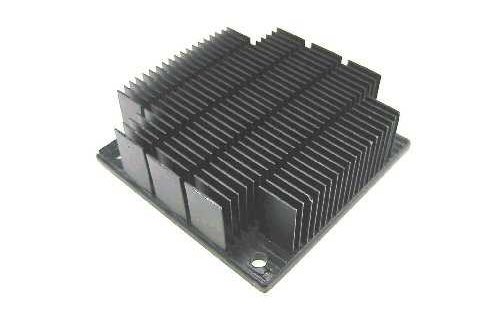

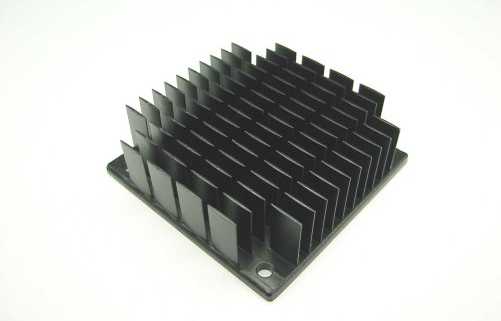

DCC60L-H series Heat Sink DCC60L-H DXF
DCC60U-H series Heat Sink DCC60U-H DXF

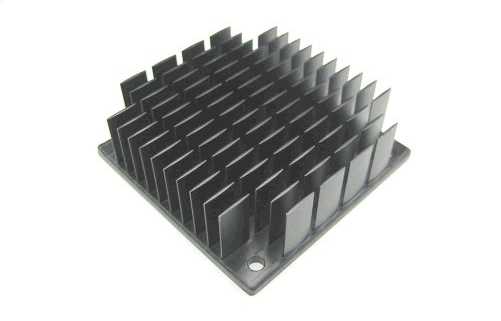

DCC60L-V series Heat Sink DCC60L-V 48.26 x 50.80 DXF

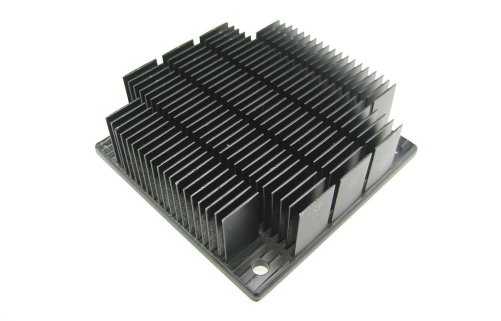

DCC60U-V series Heat Sink DCC60U-V DXF
