Online Catalog

Accessory - Fan

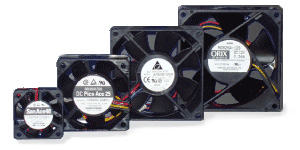

TITLE FAN Picture


Fan
Model Name
M31
M42
M45
M51
M60
Size (mm) 30 x 30 x 10 40 x 40 x 10 40.5 x 40.5 x 10.5 50 x 50 x 11 60 x 60 x 25
Vendor COFAN SANYO DENKI COFAN SANYO DENKI
Mfg. PN (F-3010H12BIII-16) (109P0412H901) (F-4010H12BⅡ-12) (F-5010HH12B-11) (109R0612H401)
Voltage DC V 12
Current AMP 0.14 0.07 0.18 0.21 0.11
Speed RPM 10,000 6,200 7,000 5,800 3,800
Maximum Air Flow m3/min 0.157 0.15 0.252 0.352 0.53
Maximum Air Pressure mmAq 5.40 4.20 4.15 3.27 4.10
Noise Level dB[A] 32 25 34 34 28
Wire length (mm) 300 +/- 10 320 +/- 20 229 +/- 10 300 +/- 10 300 +/- 20
Signal Output Speed Sensor
Pin Assignment
PINSIGNALWIRE
1GNDBLACK
2+12VDCRED
3TACHYELLOW
Housing Molex 5051-03 (or equivalent)
Terminal Molex 5159PBT (or equivalent)
Finger Guard NO
  --- Operating Manual --- --- Operating Manual

Model Name
M80
M82
M86
M92P
M93
Size (mm) 80 x 80 x 25.4 80 x 80 x 15 80 x 80 x 25 92 x 92 x 25.4
Vendor Oriental Motor SANYO DENKI Oriental Motor SANYO DENKI
Mfg. PN (T-MD825B-12-G) (109P0812M701) (109R0812G401) (MD925A-12S) (109P0912M401)
Voltage DC V 12
Current AMP 0.25 0.09 0.37 0.24 0.10
Speed RPM 3,800 2,000 4,500 3,400 2,100
Maximum Air Flow m3/min 1.00 0.57 1.50 1.30 1.04
Maximum Air Pressure mmAq 5.00 1.29 8.20 5.00 2.40
Noise Level dB[A] 35 21 40 36 27
Wire length (mm) 285 +/- 25 300 +/- 20 300 +/- 20 285 +/- 25 300 +/- 20
Signal Output NO Speed Sensor
Pin Assignment
PINSIGNALWIRE
1GNDBLACK
2+12VDCRED
3------
PINSIGNALWIRE
1GNDBLUE
2+12VDCRED
3TACHYELLOW
PINSIGNALWIRE
1GNDBLACK
2+12VDCRED
3TACHYELLOW
PINSIGNALWIRE
1GNDBLUE
2+12VDCRED
3TACHYELLOW
Housing Molex 5051-03 (or equivalent)
Terminal Molex 5159PBT (or equivalent)
Finger Guard YES NO
  Operating Manual Operating Manual Operating Manual Operating Manual Operating Manual
Air Flow : 1 m³/min = 35.31 CFM

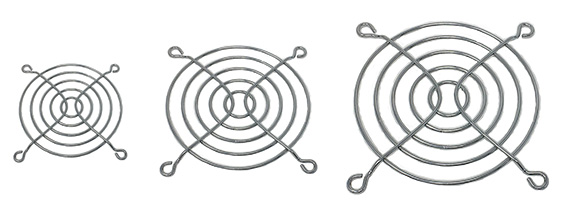

Finger Guard
Model Name Fan Size (mm) Fan Model Name
FG60
60 x 60 Fan M60 Finger Guard
FG80
80 x 80 Fan M80 , M82 , M86
FG92
92 x 92 Fan M92P , M93
