LPD Series

LPD Series

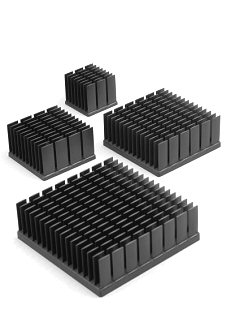

  • Elliptical fins with 0.75-0.95mm fin thickness.
  • Low presure drop heat sink for highly populated system.
  • Click on model number for detailed information including specifications and performance data.
catalog RoHS REACH 3D CAD
LPD Series Heat Sink Model Base Size (mm) Height (mm) Drawing
LPD15 15 x 15 3, 4, 5, 6, 7, 10,
12, 15, 20, 25
DXF
LPD17 17 x 17 DXF
LPD19 19 x 19 DXF
LPD22 22 x 22 DXF
LPD25 25 x 25 DXF
LPD28 28 x 28 DXF
LPD30 30 x 30 3, 4, 5, 6, 7, 10, 12,
15, 20, 25, 30, 35
DXF
LPD32 32 x 32 DXF
LPD35 35 x 35 DXF
LPD38 38 x 38 DXF
LPD40 40 x 40 DXF
LPD42 42 x 42 6, 7, 8, 9, 10, 12,
15, 20, 25, 30, 35
DXF
LPD45 45 x 45 DXF
LPD50 50 x 50 DXF
LPD52 52 x 52 DXF
LPD54 54 x 54 DXF
LPD60 60 x 60 DXF
LPD70 70 x 70 8, 10, 12, 15,
20, 25, 30, 35, 40
DXF
LPD80 80 x 80 12, 15, 20,
25, 30, 35, 40
DXF
LPD90 90 x 90 DXF
LPD100 100 x 100 15, 20, 25,
30, 35, 40
DXF
LPD2040 20 x 40 3, 4, 5, 6, 7,
10, 12, 15, 20, 25
DXF
LPD4020 40 x 20 DXF
LPD3040 30 x 40 3, 4, 5, 6, 7, 10, 12,
15, 20, 25, 30, 35
DXF
LPD4030 40 x 30 DXF
LPD4060 40 x 60 6, 7, 8, 9, 10, 12,
15, 20, 25, 30, 35
DXF
LPD6040 60 x 40 DXF
LPD5070 50 x 70 8, 10, 12, 15,
20, 25, 30, 35
DXF
LPD7050 70 x 50 DXF
LPD6080 60 x 80 DXF
LPD8060 80 x 60 DXF
LPD60120 60 x 120 12, 15, 20, 25,
30, 35, 40
DXF
LPD12060 120 x 60 DXF
LPD70130 70 x 130 DXF
