Passive Heat Sink ( Pin )

Series Name Description Base Size (mm) Height (mm)
N N series Omnidirectional hexagon pin fin heat sinks.
Sparse fin pattern. Suitable for natural convection.
19 x 19 - 100 x 100,
130 x 70
10 - 40
CS CS series High Aspect Ratio
Omnidirectional square pin fin heat sinks.
40 x 40,
45 x 45
50
S S series Omnidirectional square pin fin heat sinks. 10 x 10 - 100 x 100,
120 x 60
5 - 40
ST ST series Omnidirectional heat sinks featuring thin, low profile, pins.
Suitable for applications with very limited space.
19 x 19 - 60 x 60 4 - 7

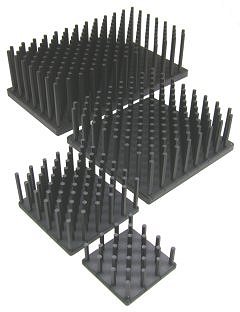

N Series
  • Omnidirectional hexagon pin fin heat sinks.
  • Sparse fin pattern. Suitable for natural convection.
catalog 3D CAD RoHS REACH
N series Heat Sink Model Base Size (mm) Height (mm) Drawing
N19 19 x 19 10, 12, 15, 20, 25 DXF
N25 25 x 25 DXF
N30 30 x 30 DXF
N35 35 x 35 DXF
N40 40 x 40 DXF
N45 45 x 45 DXF
N50 50 x 50 DXF
N54 54 x 54 DXF
N60 60 x 60 20, 25, 30, 35, 40 DXF
N70 70 x 70 DXF
N80 80 x 80 DXF
N90 90 x 90 DXF
N100 100 x 100 DXF
N13070 130 x 70 DXF


CS Series
  • High Aspect Ratio
  • Omnidirectional square pin fin heat sinks.
catalog 3D CAD RoHS REACH
CS series Heat Sink Model Base Size (mm) Height (mm) Drawing
CS40 40 x 40 50 DXF
CS45 45 x 45 DXF


S Series
  • Omnidirectional square pin fin heat sinks.
catalog 3D CAD RoHS REACH
S series Heat Sink Model Base Size (mm) Height (mm) Drawing
S1510 10 x 10 5, 7, 10, 12, 15, 20 DXF
S1515 15 x 15 7, 10, 12, 15, 20, 25 DXF
S1519 19 x 19 DXF
S1525 25 x 25 DXF
S1530 30 x 30 DXF
S1535 35 x 35 DXF
S1540 40 x 40 DXF
S1545 45 x 45 15, 20, 25 DXF
S1550 50 x 50 DXF
S1555 55 x 55 DXF
S1560 60 x 60 15, 20, 25, 30 DXF
S1570 70 x 70 20, 25, 30 DXF
S2080 80 x 80 20, 25, 30, 35, 40 DXF
S2090 90 x 90 DXF
S20100 100 x 100 DXF
S2012060 120 x 60 15, 20, 25, 30, 35, 40 DXF


ST Series
  • Omnidirectional heat sinks featuring thin, low profile, pins.
  • Suitable for applications with very limited space.
catalog 3D CAD RoHS REACH
ST series Heat Sink Model Base Size (mm) Height (mm) Drawing
ST15 15 x 15 4, 5, 6, 7 DXF
ST19 19 x 19 DXF
ST25 25 x 25 DXF
ST30 30 x 30 DXF
ST35 35 x 35 DXF
ST40 40 x 40 DXF
ST60 60 x 60 DXF
