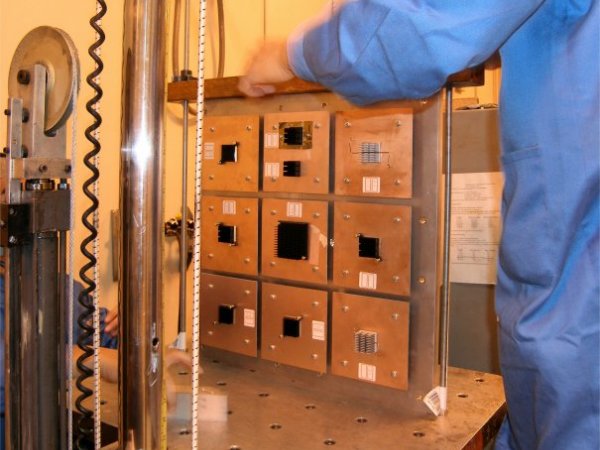

Secure attachment of a heat sink to a chip or PCB is a very important aspect of the mechanical design. We offer variety of attachment methods including tape, push pins, Z-Clips, and shoulder screws. In an effort to provide our customers with detailed support data, we contracted with an independent laboratory to conduct shock and vibration tests for all of the various attachment methods we currently offer.
|Test item||Report||Movie (brief examples)|
|Tape, Push pin,
Z-Clip, Shoulder screw
Tape, Push pin,
QSZ clip, Push pin
2.5mm Diameter Push pin
No damage or loose heat sinks were observed after the full range of vibration and shock tests were completed.
Each customer is responsible for the confirmation of the robust attachment for their specific conditions. The result may vary in the real environment.
