FH60

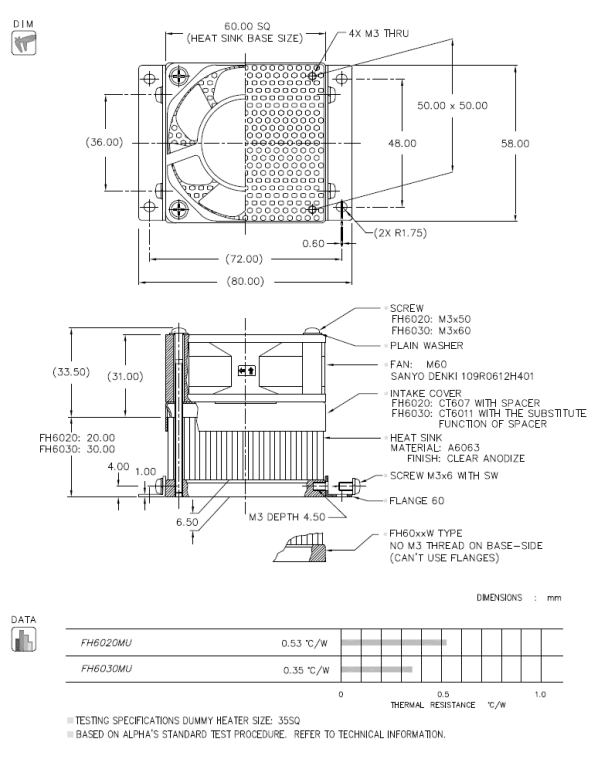

FH60 SPECIFICATION & THERMAL DATA

Model Name :
FH60
line
Heat Sink
  Code Height
20 20 mm
30 30 mm
Option
  Code Heat Sink [Note] Intake Cover Flange Screw Fan Weight(g) Option
W No threaded side holes
NO -- NO NO --
A Threaded side holes
NO NO NO NO --
MF CT60-- FLANGE60 M3x-- NO -- --
MU CT60-- FLANGE60 M3x-- M60 --
These products are packaged in bulk (not assembled).
No Sidetap
No threaded side holes
With Sidetap
Threaded side holes
If the use of the standard mounting flange is not required, please select "No threaded side holes". If the standard mounting flange will be required, please select "Threaded side holes".
catalog 3D CAD RoHS REACH
FH60 Data
  • TESTING SPECIFICATIONS DUMMY HEATER SIZE: 35 SQ
  • BASED ON ALPHA'S STANDARD TEST PROCEDURE. REFER TO TECHNICAL INFORMATION.
