FS40

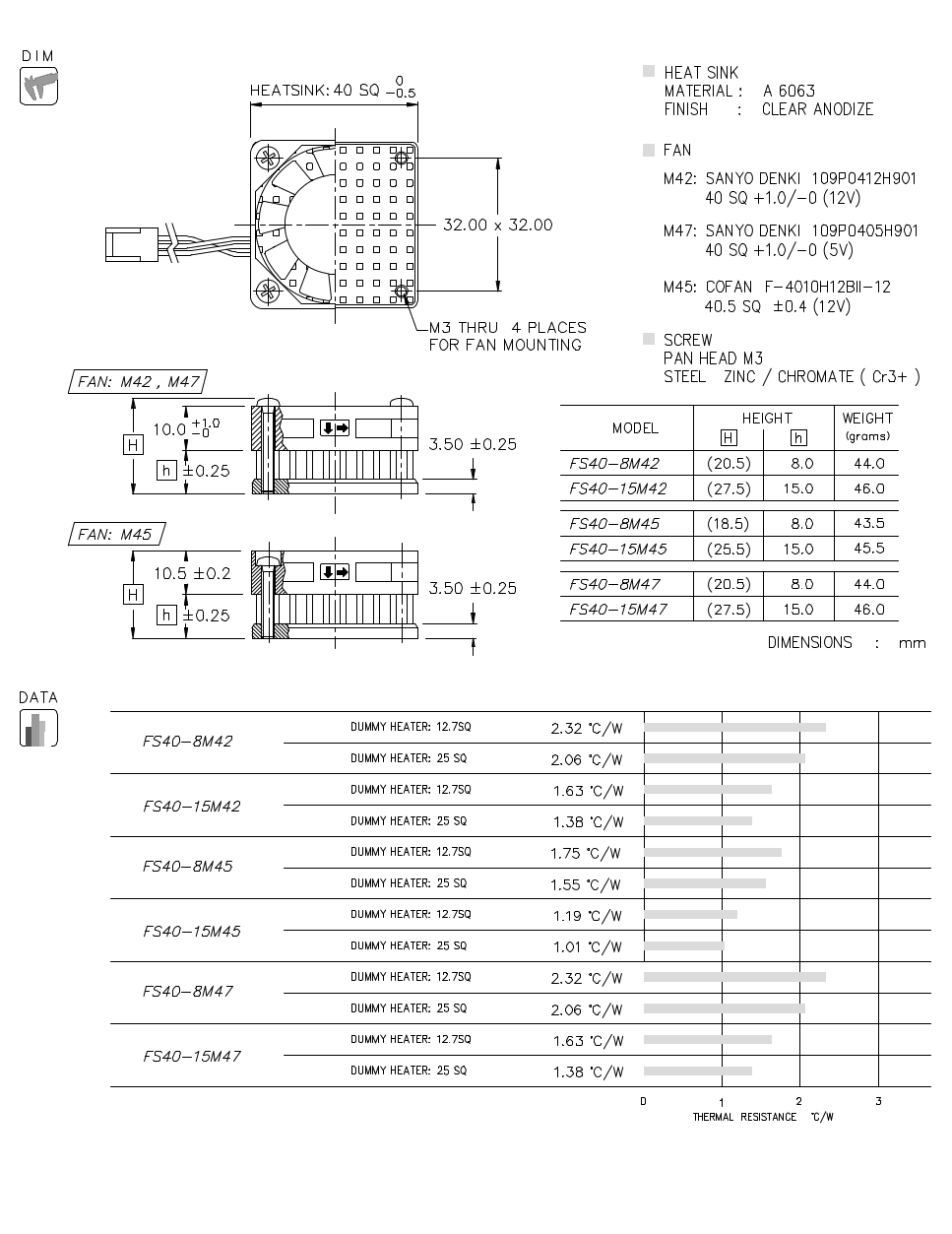

FS40 SPECIFICATION & THERMAL DATA

Model Name :
FS40
-
line
Heat Sink
 CodeHeight
(h)
88 mm
1515 mm
Option
 CodeHeat SinkFlangeScrewFanWeight(g)Option
W NONONO --
M42 NOM3x--M42----
M45 NOM3x--M45----
The fan motor is assembled to the heat sink for M42 and M45 models.
No Sidetap
No threaded side holes
With Sidetap
Threaded side holes
If the use of the standard mounting flange is not required, please select "No threaded side holes". If the standard mounting flange will be required, please select "Threaded side holes".
catalog 3D CAD RoHS REACH
FS40 Data
  • TESTING SPECIFICATIONS DUMMY HEATER SIZE: 12.7 SQ & 25 SQ
Related Product : Heat Sink with attachment tabs
FSR Model Base Size Heatsink Height Pitch
FSR40 40 x 40 8, 15 45 x 45
