LPD19

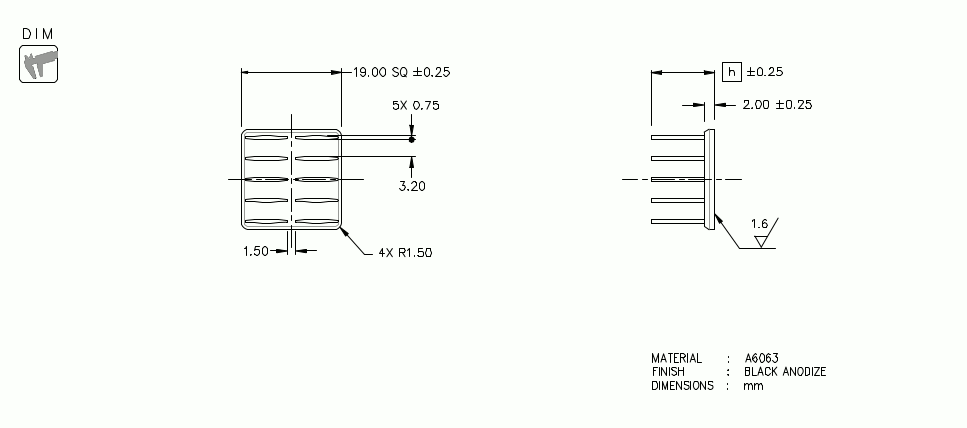

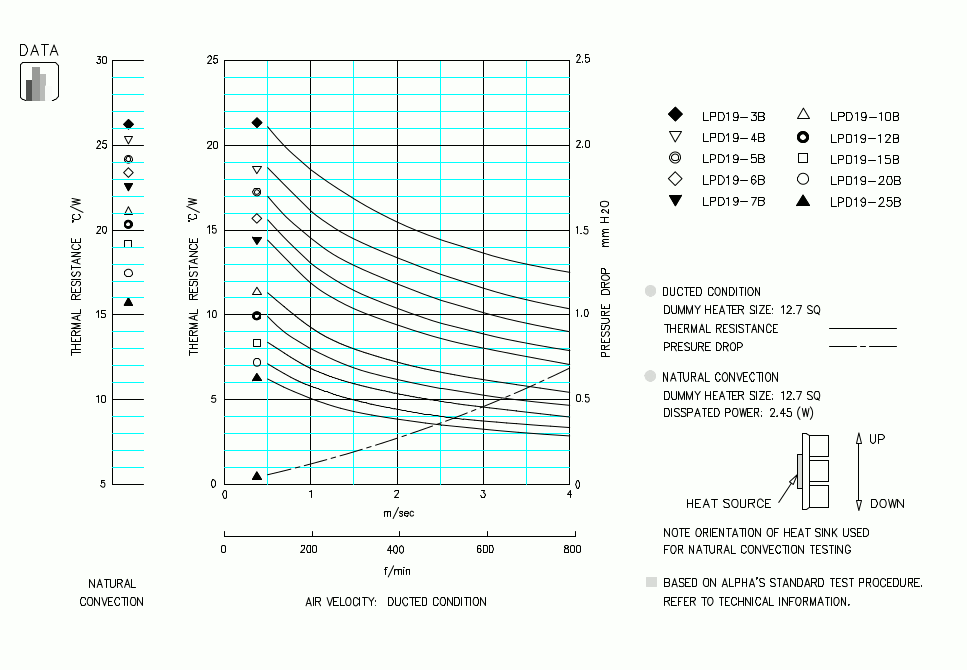

LPD19 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
LPD19-3B 3 2.0 2.0 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
LPD19-4B 4 2.1 STEP IGES
LPD19-5B 5 2.3 STEP IGES
LPD19-6B 6 2.4 STEP IGES
LPD19-7B 7 2.5 STEP IGES
LPD19-10B 10 2.9 STEP IGES
LPD19-12B 12 3.2 STEP IGES
LPD19-15B 15 3.6 STEP IGES
LPD19-20B 20 4.3 STEP IGES
LPD19-25B 25 5.0 STEP IGES
Select Height
---
---

Specification
