LPD35

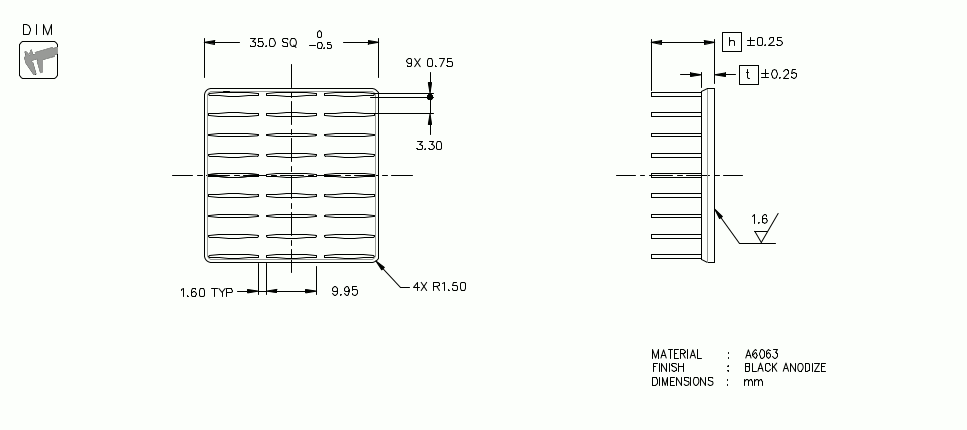

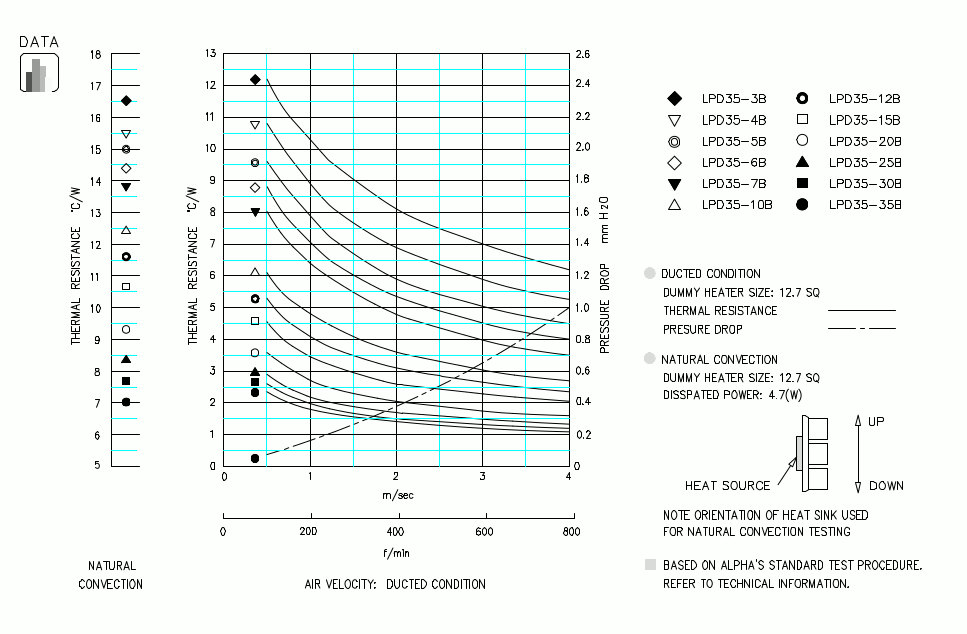

LPD35 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
LPD35-3B 3 2.0 7.2 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
LPD35-4B 4 7.6 STEP IGES
LPD35-5B 5 8.1 STEP IGES
LPD35-6B 6 8.5 STEP IGES
LPD35-7B 7 8.9 STEP IGES
LPD35-10B 10 3.0 12.8 STEP IGES
LPD35-12B 12 13.6 STEP IGES
LPD35-15B 15 14.9 STEP IGES
LPD35-20B 20 17.1 STEP IGES
LPD35-25B 25 19.2 STEP IGES
LPD35-30B 30 21.3 STEP IGES
LPD35-35B 35 23.5 STEP IGES
Select Height
---
---

Specification
