LPD45

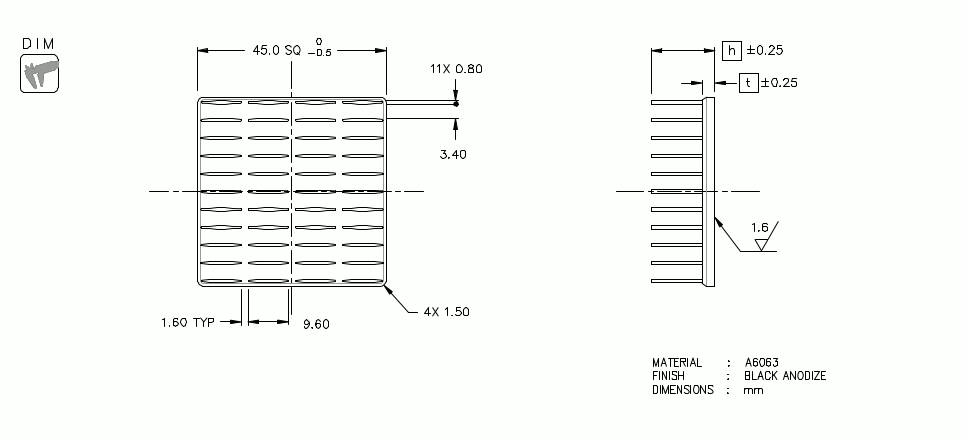

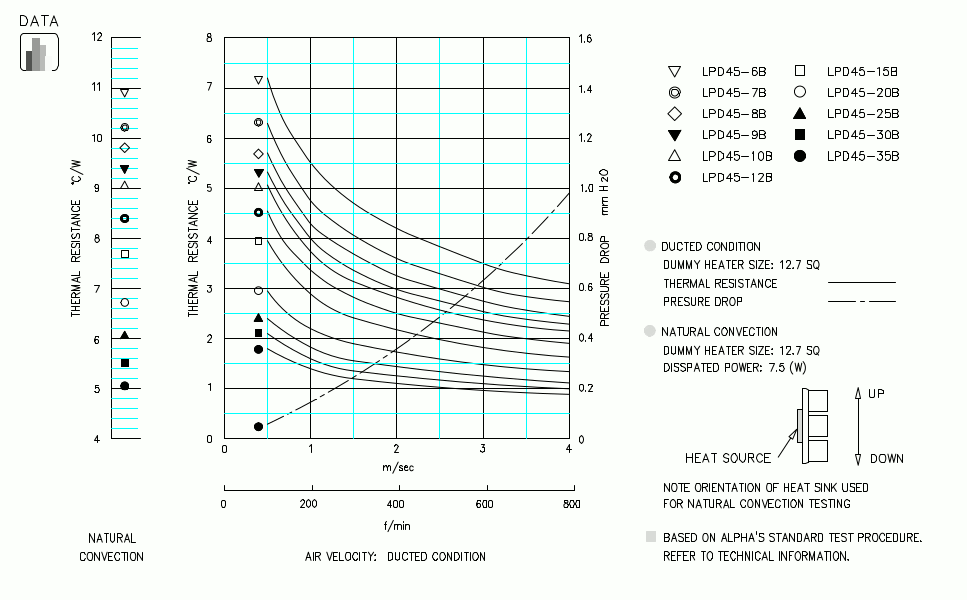

LPD45 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
LPD45-6B 6 2.5 15.8 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
LPD45-7B 7 16.7 STEP IGES
LPD45-8B 8 17.3 STEP IGES
LPD45-9B 9 18.7 STEP IGES
LPD45-10B 10 3.0 21.2 STEP IGES
LPD45-12B 12 22.6 STEP IGES
LPD45-15B 15 24.7 STEP IGES
LPD45-20B 20 28.2 STEP IGES
LPD45-25B 25 31.7 STEP IGES
LPD45-30B 30 36.0 STEP IGES
LPD45-35B 35 39.6 STEP IGES
Select Height
---
---

Specification
