LPD54

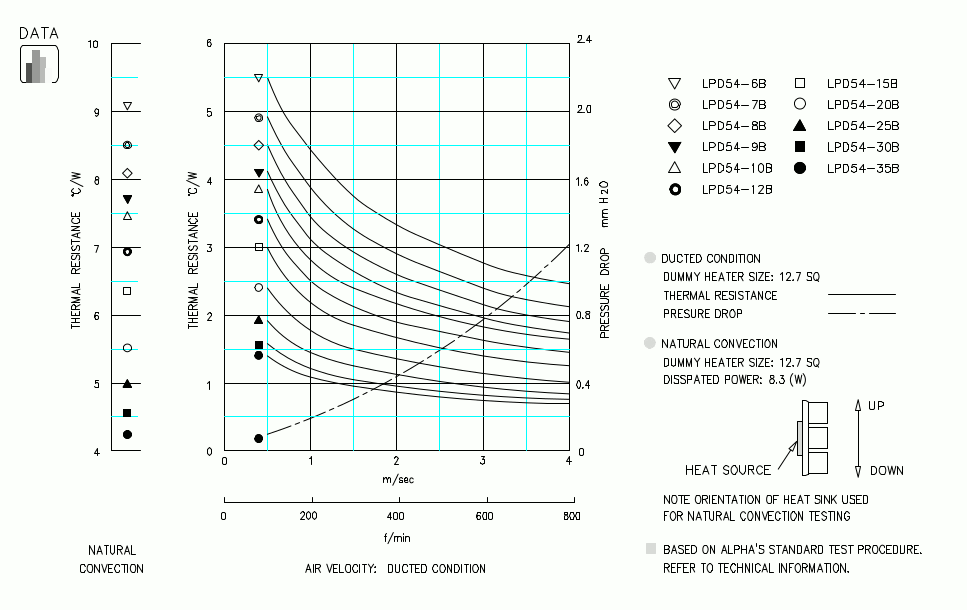

LPD54 SPECIFICATION & THERMAL DATA

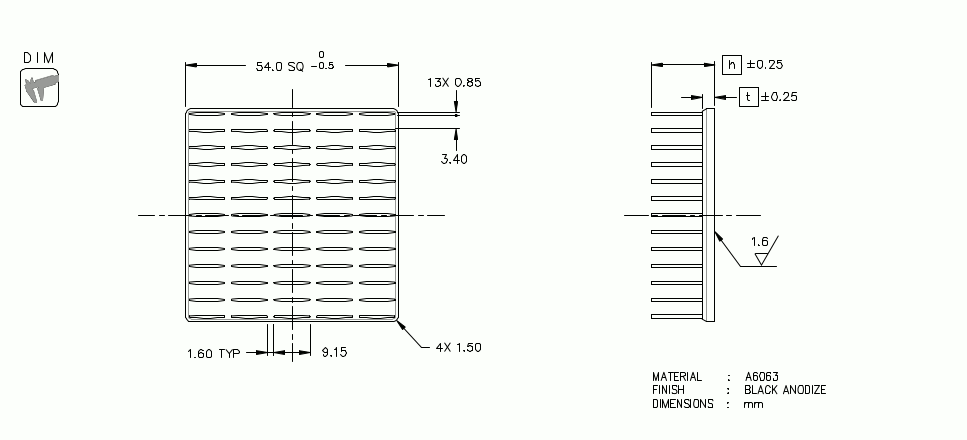

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
LPD54-6B 6 3.0 27.0 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
LPD54-7B 7 28.0 STEP IGES
LPD54-8B 8 29.0 STEP IGES
LPD54-9B 9 30.0 STEP IGES
LPD54-10B 10 4.0 37.5 STEP IGES
LPD54-12B 12 39.5 STEP IGES
LPD54-15B 15 42.4 STEP IGES
LPD54-20B 20 47.3 STEP IGES
LPD54-25B 25 52.2 STEP IGES
LPD54-30B 30 58.5 STEP IGES
LPD54-35B 35 63.8 STEP IGES
Select Height
---
---

Specification
