MD50

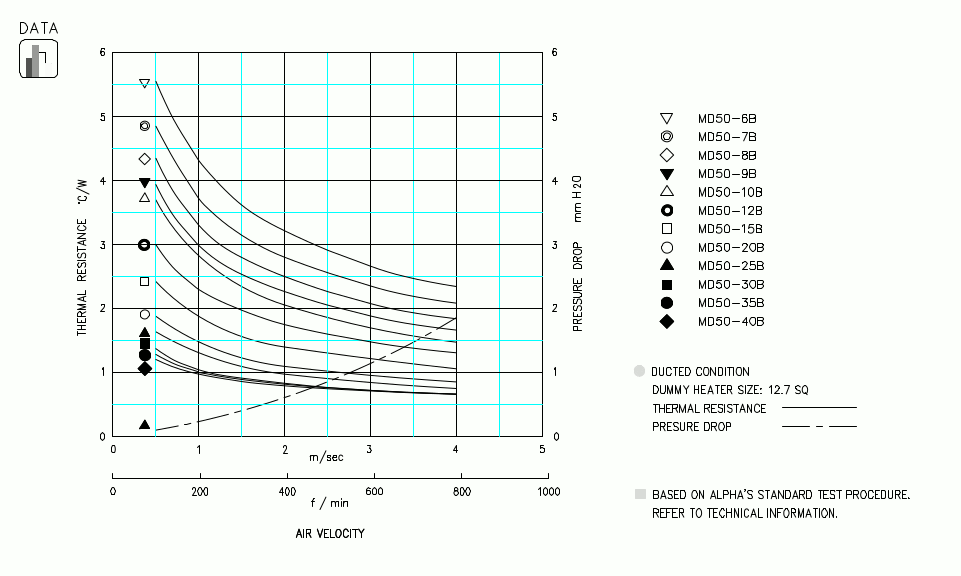

MD50 SPECIFICATION & THERMAL DATA

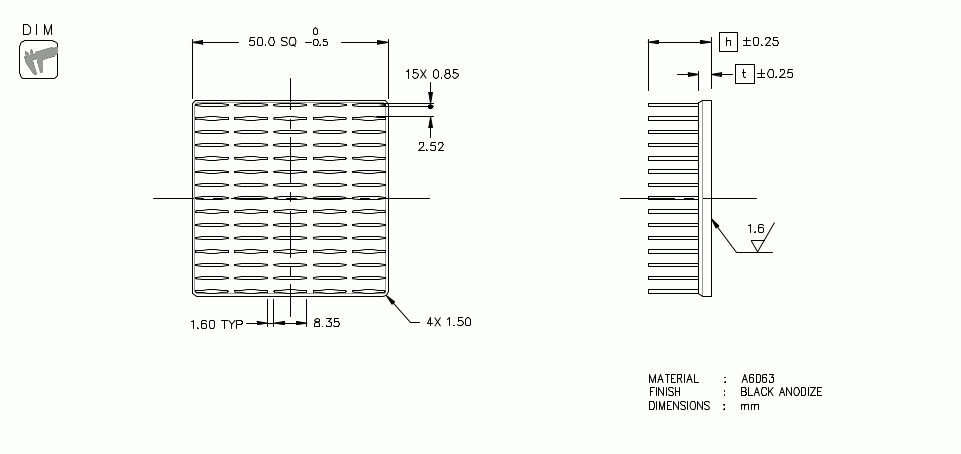

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
MD50-6B 6 2.5 20.6 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
MD50-7B 7 21.7 STEP IGES
MD50-8B 8 22.8 STEP IGES
MD50-9B 9 23.9 STEP IGES
MD50-10B 10 3.5 30.7 STEP IGES
MD50-12B 12 32.9 STEP IGES
MD50-15B 15 36.0 STEP IGES
MD50-20B 20 41.3 STEP IGES
MD50-25B 25 46.6 STEP IGES
MD50-30B 30 56.2 STEP IGES
MD50-35B 35 61.8 STEP IGES
MD50-40B 40 67.0 STEP IGES
Select Height
---
---

Specification
